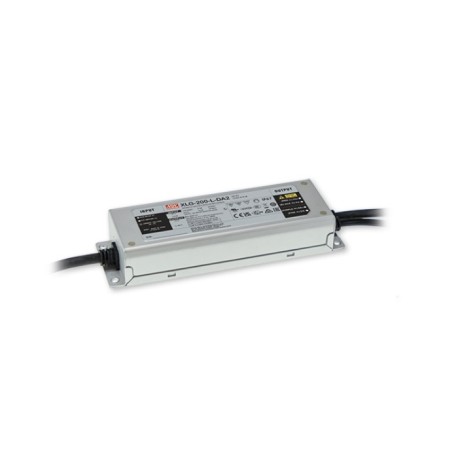

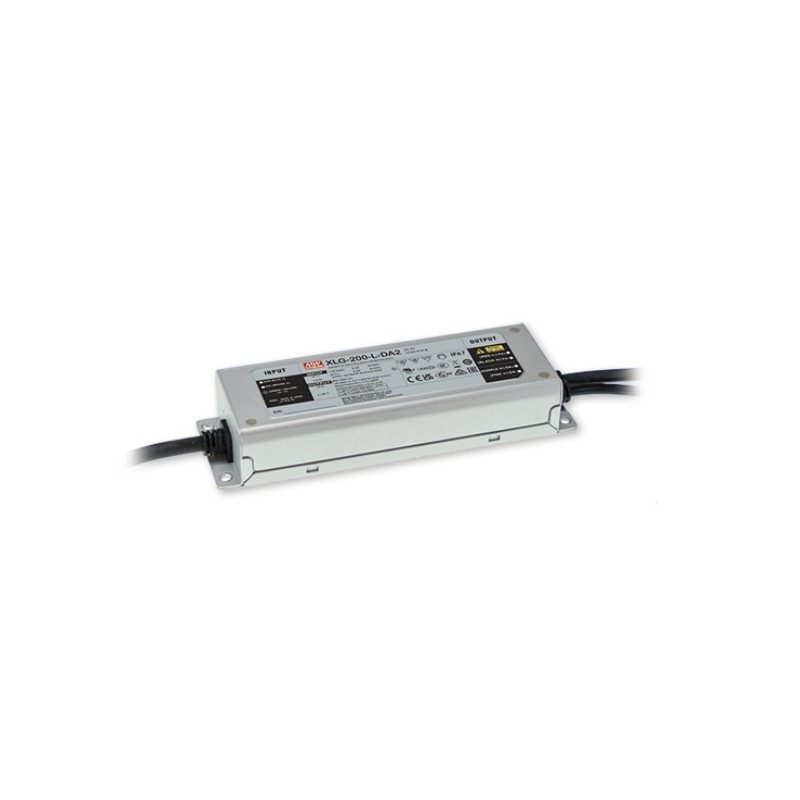

XLG-200-L-DA2-A

Mean Well LED driver series XLG-200-DA2

LED drivers in a metal housing (IP67) with 200W, a constant power, a low no-load power and a Dali-2 interface. These devices have an auxiliary output (12V/250mA) and are protected against overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-200-L-DA2-A and XLG-200-H-DA2-A.

  • single output
  • output: 200W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 75A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1800V AC
  • operating temperature: -40 to +90°C
  • dimensions: 199x63x35,5mm
  • weight: 850g
XLG-200-L-DA2-A, Mean Well LED drivers, 200W, IP67, constant power, dimmable, auxiliary output, DALI 2.0 interface, XLG-200-DA2

XLG-200-L-DA2-A

244863 XLG-200-L-DA2-A XLG-200-L-DA2-A Mean Well LED driver series XLG-200-DA2. LED drivers in a metal housing (IP67) with 200W, a constant power, a low no-load power and a Dali-2 interface. These devices have an auxiliary output (12V/250mA) and are protected against overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-200-L-DA2-A and XLG-200-H-DA2-A. single output output: 200W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 75A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1800V AC operating temperature: -40 to +90°C dimensions: 199x63x35,5mm weight: 850g

Specifications

manufacturer
Manufacturer's name XLG-200-L-DA2-A
Output voltage [V] 142...285
Efficiency [%] 94
Output current [A] 0,7
Output power [W] 200
Data Sheet

Unit price

38,19 €

Stock: 0
Further delivery:
CW 17/2025

Minimum order quantity 500 units or
multiples of 500.
