XLG-20-H

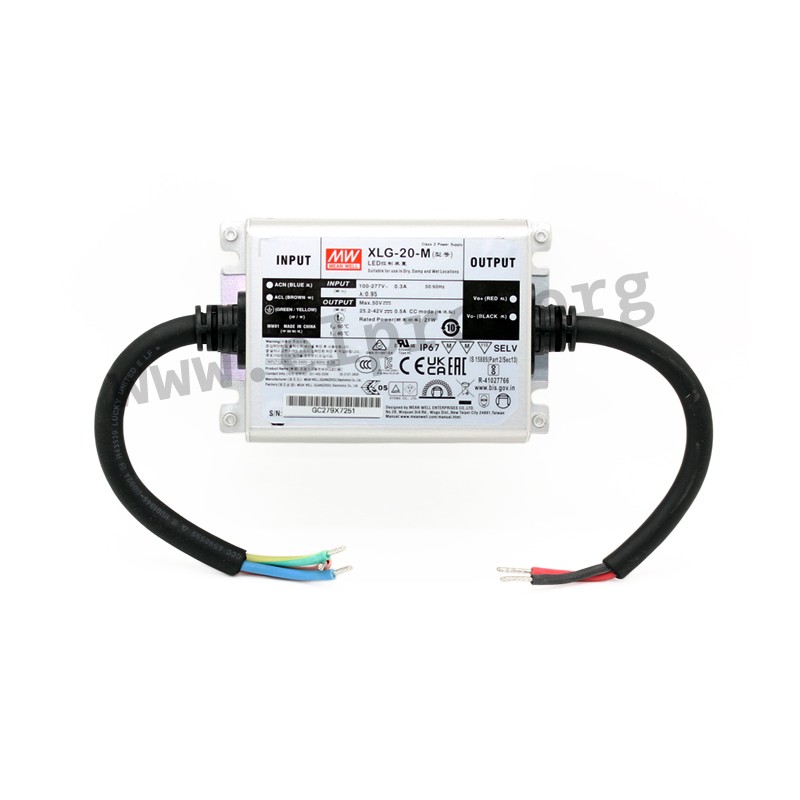

Mean Well LED power supply series XLG-20

LED switching power supplies in a metal housing (IP67) with a constant current, 20W and a universal input. These devices are protected against overload (hiccup), overcurrent, short circuit, overtemperature as well as overvoltage and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 as well as EN61000-3-3 and have a built-in active PFC function. We offer the following types of this Mean Well series with a 3 in 1 dimming function (1 to 10V DC, 10V PWM signal, resistance): XLG-20-L-B, XLG-20-M-B and XLG-20-H-B as well as the non-dimmable power supplies XLG-20-L, XLG-20-M and XLG-20-H.

  • single output
  • output: 18,9 to 21W
  • input voltage: 90 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 5A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +80°C
  • dimensions: 95x63x30mm
  • weight: 340g
XLG-20-H, Mean Well LED switching power supplies, 20W, IP67, constant current, PFC, XLG-20 series

XLG-20-H

241230 XLG-20-H XLG-20-H 4711287482187 Mean Well LED power supply series XLG-20. LED switching power supplies in a metal housing (IP67) with a constant current, 20W and a universal input. These devices are protected against overload (hiccup), overcurrent, short circuit, overtemperature as well as overvoltage and are suitable for LED lighting applications. They comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 as well as EN61000-3-3 and have a built-in active PFC function. We offer the following types of this Mean Well series with a 3 in 1 dimming function (1 to 10V DC, 10V PWM signal, resistance): XLG-20-L-B, XLG-20-M-B and XLG-20-H-B as well as the non-dimmable power supplies XLG-20-L, XLG-20-M and XLG-20-H. single output output: 18,9 to 21W input voltage: 90 to 305V AC (47 to 63Hz) maximal input inrush current: 5A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +80°C dimensions: 95x63x30mm weight: 340g

Specifications

manufacturer
Manufacturer's name XLG-20-H
GTIN 4711287482187
Efficiency [%] 88
Output current [A] 0,7
Output power [W] 21
Output voltage range [V] 18...30
Data Sheet

Unit price

12,79 €

Volume discounts

Quantity Unit price
50 + 11,89 €

Stock: 139
Further delivery:
CW 11/2025
