XLG-150-L-DA2-A

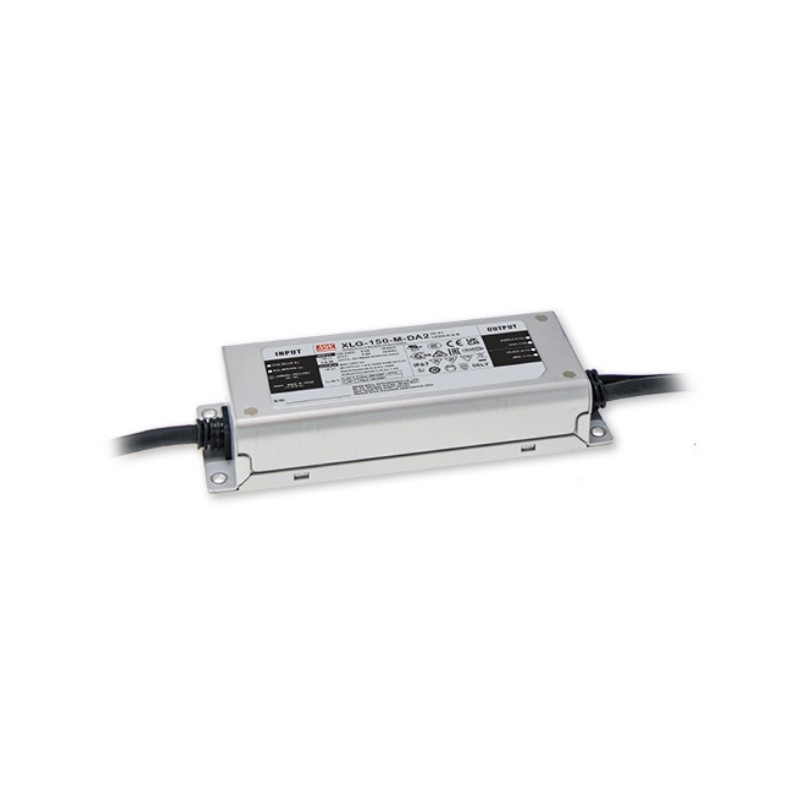

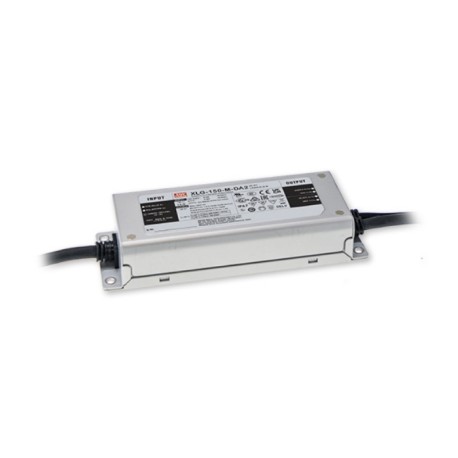

Mean Well LED driver series XLG-150-DA2

LED drivers in a metal housing (IP67) with 150W, a constant power, an auxiliary power (12V/250mA) and a low no-load power. These devices have a Dali-2 interface and are protected against overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-150-L-DA2-A, XLG-150-M-DA2-A and XLG-150-H-DA2-A.

  • single output
  • output: 150W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 180x63x35,5mm
  • weight: 800g
XLG-150-L-DA2-A, Mean Well LED drivers, 150W, IP67, constant power, dimmable, auxiliary output, DALI 2.0 interface, XLG-150-DA2

XLG-150-L-DA2-A

244858 XLG-150-L-DA2-A XLG-150-L-DA2-A Mean Well LED driver series XLG-150-DA2. LED drivers in a metal housing (IP67) with 150W, a constant power, an auxiliary power (12V/250mA) and a low no-load power. These devices have a Dali-2 interface and are protected against overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-150-L-DA2-A, XLG-150-M-DA2-A and XLG-150-H-DA2-A. single output output: 150W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 180x63x35,5mm weight: 800g

Specifications

manufacturer
Manufacturer's name XLG-150-L-DA2-A
Output voltage [V] 120...214
Efficiency [%] 93
Output current [A] 0,7
Output power [W] 150
Data Sheet

Unit price

32,29 €

Stock: 0
Further delivery:
CW 22/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
