XLG-100-24

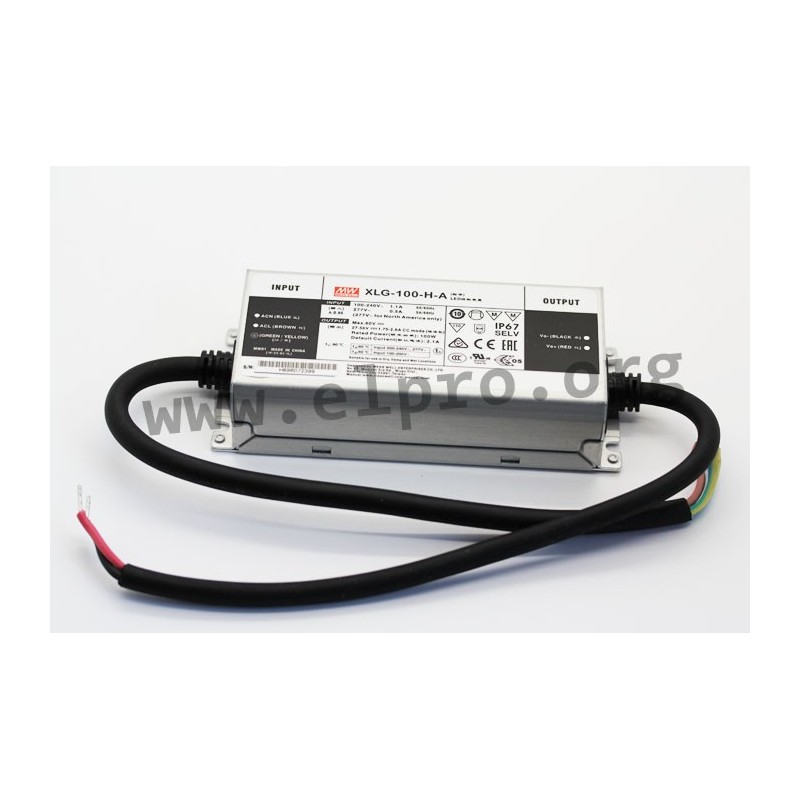

Mean Well LED driver series XLG-100

LED drivers in a metal housing (IP67) with 100W, a constant power (XLG-100-L/XLG-100-H), a constant current/voltage (XLG-100-12/XLG-100-24) and a 6kV surge immunity level. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overcurrent, overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-100-12, XLG-100-24, XLG-100-L and XLG-100-H.

  • single output
  • output: 96 to 100W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • no-load power: <0,5W
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 4200V AC
  • withstand voltage I/P-FG: 2100V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 140x63x32mm
  • weight: 580g

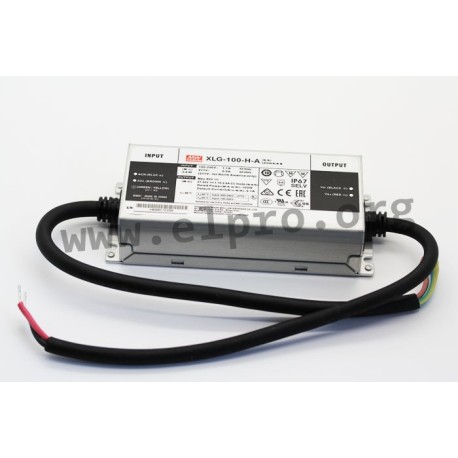

XLG-100-24, Mean Well LED drivers, 100W, IP67, CV and CC (mixed mode), constant power, XLG-100 series

XLG-100-24

244569 XLG-100-24 XLG-100-24 Mean Well LED driver series XLG-100. LED drivers in a metal housing (IP67) with 100W, a constant power (XLG-100-L/XLG-100-H), a constant current/voltage (XLG-100-12/XLG-100-24) and a 6kV surge immunity level. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overcurrent, overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLG-100-12, XLG-100-24, XLG-100-L and XLG-100-H. single output output: 96 to 100W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC no-load power: &lt;0,5W maximal input inrush current: 50A withstand voltage I/P-O/P: 4200V AC withstand voltage I/P-FG: 2100V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 140x63x32mm weight: 580g

Specifications

manufacturer
Manufacturer's name XLG-100-24
Output voltage [V] 24
Efficiency [%] 92
Output power [W] 96
Output current [mA] 4000
Data Sheet

Unit price

20,69 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
