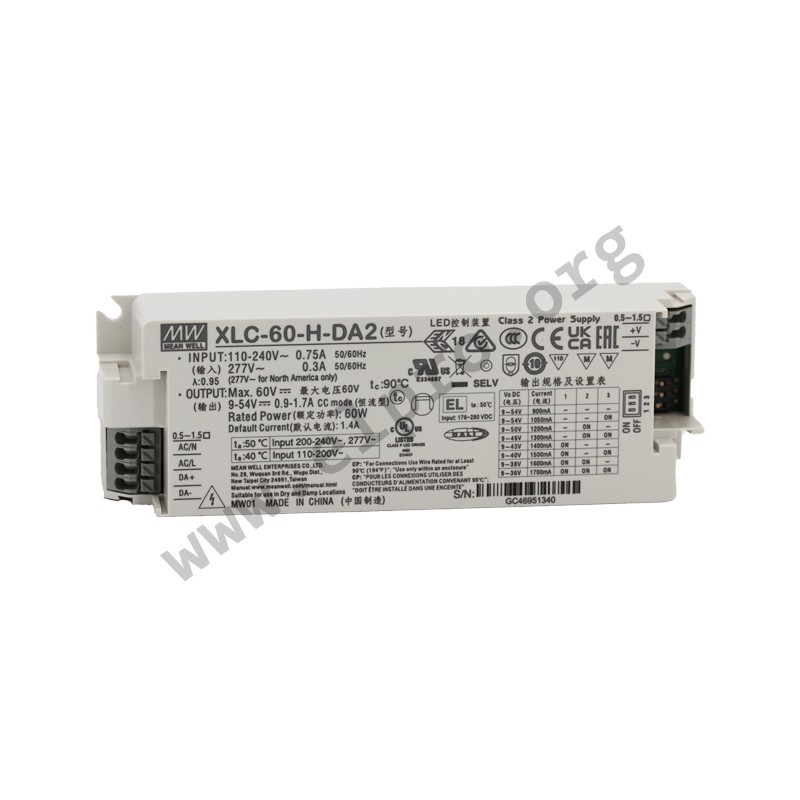

XLC-60-H-DA2

Mean Well LED driver series XLC-60

LED drivers in a plastic housing with 60W, a DALI-2 interface, an NFC function (XLC-60_N), a dimming function, a strain relief (XLC-60-H-S_) and an adjustable output current. These devices have a built-in active PFC function and are protected against overtemperature as well as short circuit. They are suitable for LED lighting applications, have a low no-load power (<0,5W) and comply with IEC62386-101/102/207, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLC-60-H-DA2, XLC-60-H-DA2N, XLC-60-H-DA2S and XLC-60-H-DA2SN.

  • single output
  • output: 60W
  • input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC
  • maximal input inrush current: 15A
  • leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C

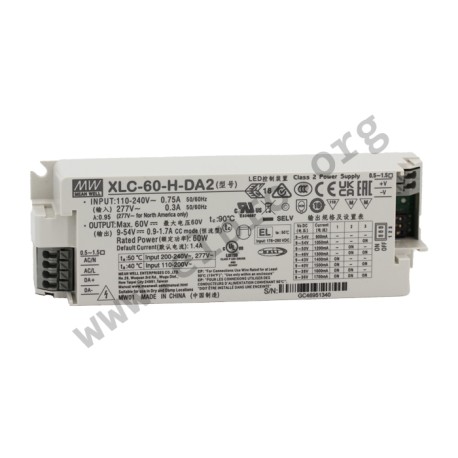

XLC-60-H-DA2, Mean Well LED drivers, 60W, constant power, dimmable, DALI 2.0 interface, XLC-60 series

XLC-60-H-DA2

245594 XLC-60-H-DA2 XLC-60-H-DA2 Mean Well LED driver series XLC-60. LED drivers in a plastic housing with 60W, a DALI-2 interface, an NFC function (XLC-60_N), a dimming function, a strain relief (XLC-60-H-S_) and an adjustable output current. These devices have a built-in active PFC function and are protected against overtemperature as well as short circuit. They are suitable for LED lighting applications, have a low no-load power (&lt;0,5W) and comply with IEC62386-101/102/207, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLC-60-H-DA2, XLC-60-H-DA2N, XLC-60-H-DA2S and XLC-60-H-DA2SN. single output output: 60W input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC maximal input inrush current: 15A leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC operating temperature: -25 to +90°C

Specifications

manufacturer
Manufacturer's name XLC-60-H-DA2
Output voltage [V] 9...54
Efficiency [%] 90
Output current [A] 0,9...1,7
Output power [W] 60
