XLC-60-24-DA2

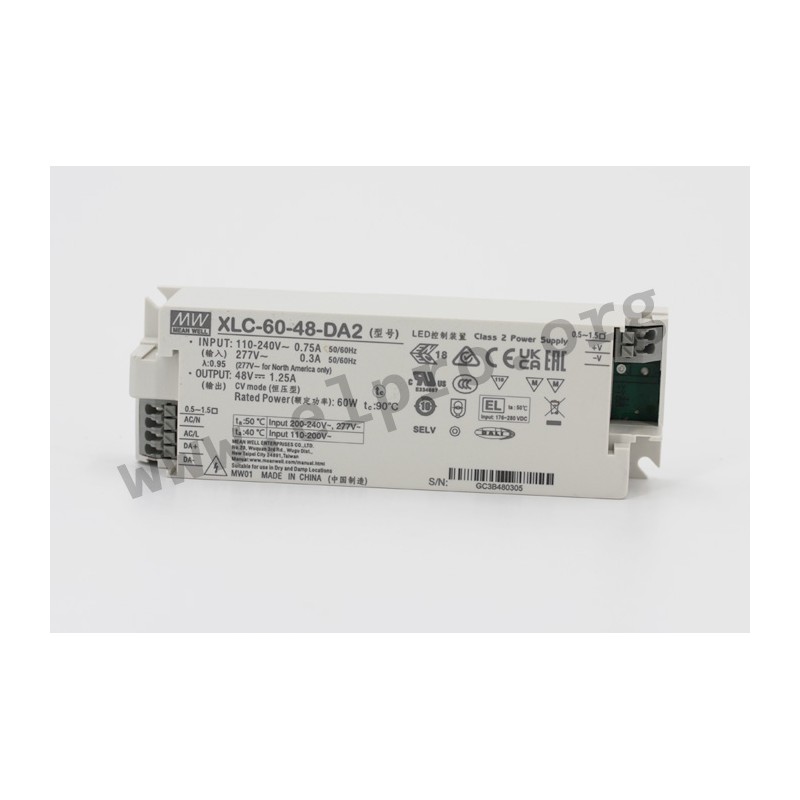

Mean Well LED driver series XLC-60

LED drivers in a plastic housing with 60W, a constant voltage, a low no-load power (<0,5W), a dimming function and a DALI-2 interface. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN62386-101/102/207, EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLC-60-12-DA2, XLC-60-12-DA2S, XLC-60-24-DA2, XLC-60-24-DA2S, XLC-60-48-DA2 and XLC-60-48-DA2S.

  • single output
  • output: 60W
  • input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC
  • maximal input inrush current: 15A
  • leakage current: <0,75mA
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
XLC-60-24-DA2, Mean Well LED drivers, 60W, constant voltage, dimmable, DALI 2.0 interface, XLC-60 series

XLC-60-24-DA2

245580 XLC-60-24-DA2 XLC-60-24-DA2 Mean Well LED driver series XLC-60. LED drivers in a plastic housing with 60W, a constant voltage, a low no-load power (&lt;0,5W), a dimming function and a DALI-2 interface. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN62386-101/102/207, EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLC-60-12-DA2, XLC-60-12-DA2S, XLC-60-24-DA2, XLC-60-24-DA2S, XLC-60-48-DA2 and XLC-60-48-DA2S. single output output: 60W input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC maximal input inrush current: 15A leakage current: &lt;0,75mA overload protection: 105 to 150% withstand voltage I/P-O/P: 3750V AC operating temperature: -25 to +90°C

Specifications

manufacturer
Manufacturer's name XLC-60-24-DA2
Output voltage [V] 24
Efficiency [%] 87
Output current [A] 2,5
Output power [W] 60
Data Sheet

Unit price

26,19 €

Volume discounts

Quantity Unit price
50 + 24,39 €

Stock: 111
Further delivery:
CW 16/2025
