XLC-40-H-SN

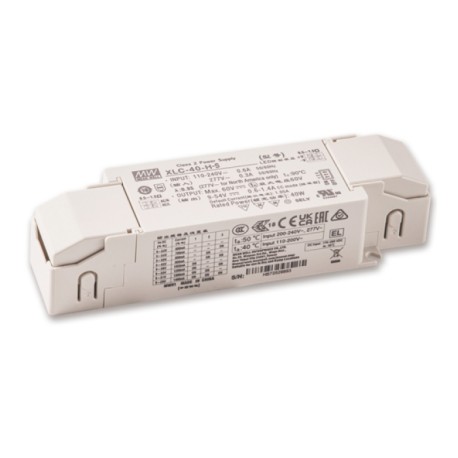

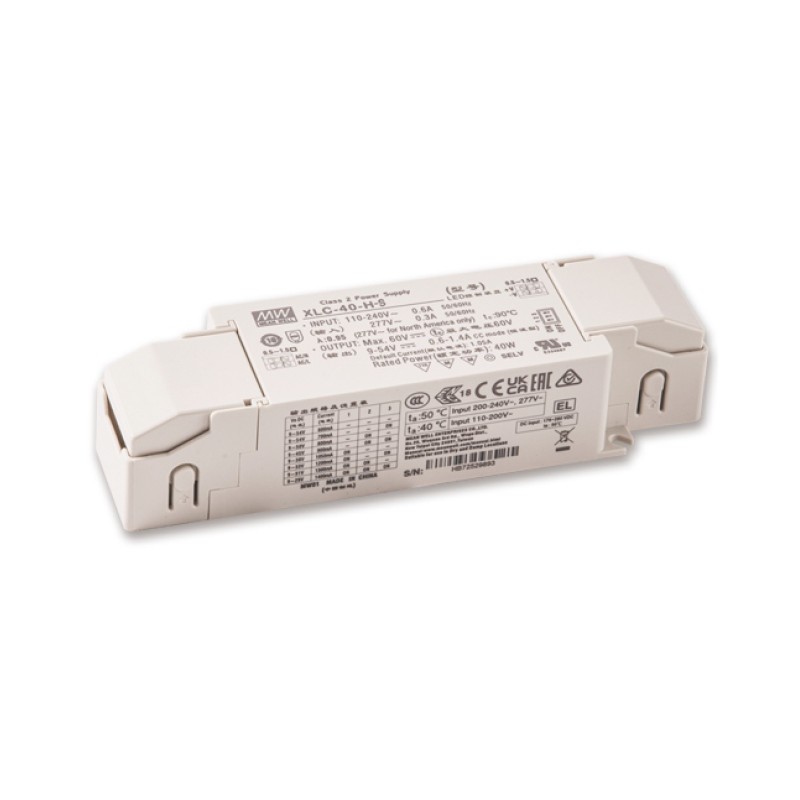

Mean Well LED driver series XLC-40

LED drivers in a plastic housing with 40W, a constant power, an NFC function (XLC-40-H-_N), a strain relief (XLC-40-H-_S_) and a low no-load power (<0,5W). These devices have a built-in active PFC function, an adjustable output current and are protected against short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: XLC-40-H, XLC-40-H-N, XLC-40-H-S and XLC-40-H-SN.

  • single output
  • output: 40W
  • input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC
  • maximal input inrush current: 10A
  • leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
XLC-40-H-SN, Mean Well LED drivers, 40W, constant power/voltage, adjustable, XLC-40 series

XLC-40-H-SN

245558 XLC-40-H-SN XLC-40-H-SN Mean Well LED driver series XLC-40. LED drivers in a plastic housing with 40W, a&nbsp;constant power, an NFC function (XLC-40-H-_N), a strain relief (XLC-40-H-_S_) and a low no-load power (&lt;0,5W). These devices have a built-in active PFC function, an adjustable output current and are protected against short circuit as well as&nbsp;overtemperature. They are suitable for LED&nbsp;lighting&nbsp;applications and comply with&nbsp;EN61347-1, EN61347-2-13, EN62384, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;XLC-40-H, XLC-40-H-N, XLC-40-H-S and XLC-40-H-SN. single output output: 40W input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC maximal input inrush current: 10A leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC operating temperature: -25 to +90&deg;C

Specifications

manufacturer
Manufacturer's name XLC-40-H-SN
Output voltage [V] 9...54
Efficiency [%] 88
Output current [A] 0,6...1,4
Output power [W] 40
Data Sheet

Unit price

17,19 €

Volume discounts

Quantity Unit price
50 + 15,99 €

Stock: 20
Further delivery:
CW 11/2025
