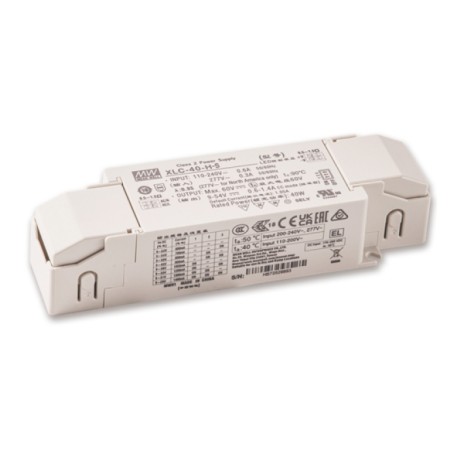

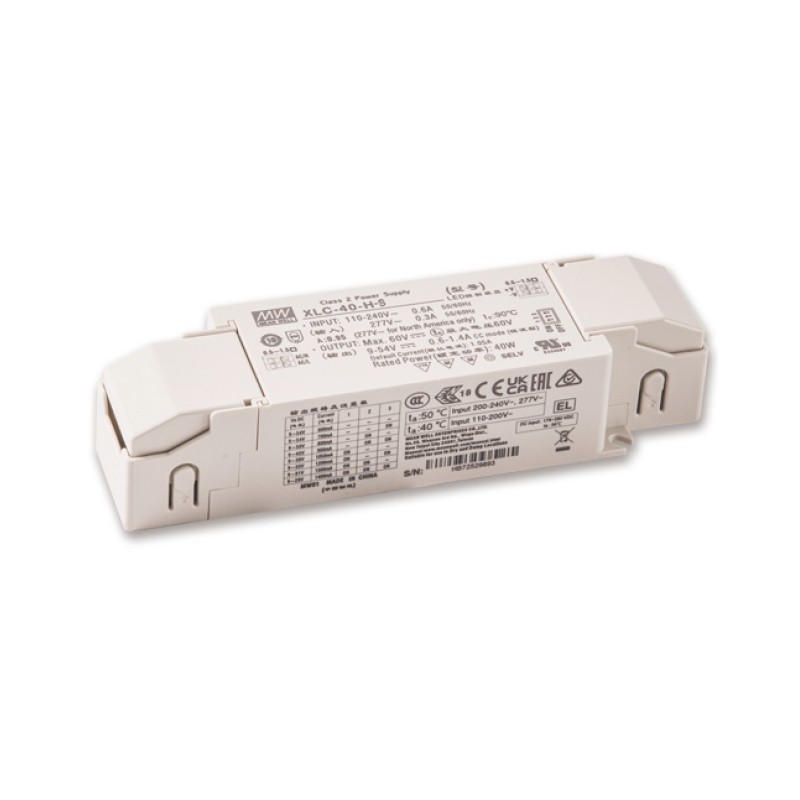

XLC-40-H-BS

Mean Well LED driver series XLC-40

LED drivers in a plastic housing with 40W, a dimming function, a constant power, an NFC function (XLN-40-H-_N), a low no-load power (<0,5W), a strain relief (XLC-40-H-BS_) and an adjustable output current. These devices have a built-in active PFC function and are protected against overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN62384. We offer the following types of this Mean Well series: XLC-40-H-B, XLC-40-H-BN, XLC-40-H-BS and XLC-40-H-BSN.

  • single output
  • output: 40W
  • input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC
  • maximal input inrush current: 10A
  • leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
XLC-40-H-BS, Mean Well LED drivers, 40W, constant power/voltage, dimmable, adjustable, XLC-40 series

XLC-40-H-BS

245550 XLC-40-H-BS XLC-40-H-BS Mean Well LED driver series XLC-40. LED drivers in a plastic housing with 40W, a dimming function, a constant power, an NFC function (XLN-40-H-_N), a low no-load power (&lt;0,5W), a strain relief (XLC-40-H-BS_) and an&nbsp;adjustable output current.&nbsp;These devices have a built-in active PFC function and are protected against overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with&nbsp;EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN62384. We offer the following types of this Mean Well series:&nbsp;XLC-40-H-B, XLC-40-H-BN, XLC-40-H-BS and XLC-40-H-BSN. single output output: 40W input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC maximal input inrush current: 10A leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC operating temperature: -25 to +90&deg;C

Specifications

manufacturer
Manufacturer's name XLC-40-H-BS
Output voltage [V] 9...54
Efficiency [%] 88
Output current [A] 0,6...1,4
Output power [W] 40
Data Sheet

Unit price

20,49 €

Volume discounts

Quantity Unit price
50 + 18,99 €

Stock: 24
Further delivery:
CW 11/2025
