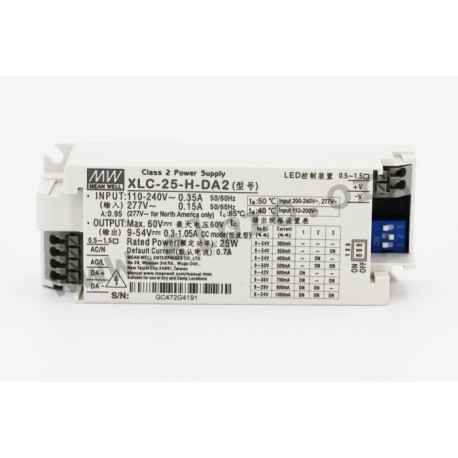

XLC-25-H-DA2S

Mean Well LED driver series XLC-25

LED drivers in a plastic housing with 25W, a DALI-2 interface, a dimming function, a strain relief (XLC-25-_S_) and an NFC function (XLC-25-DA2_N). These devices have a built-in active PFC function, a low no-load power (<0,5W) and are protected against short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN62386-101/102/207, EN61347-1, EN61347-2-13, EN61547, EN55015 as well as EN61000-3-3. We offer the following types of this Mean Well series: XLC-25-H-DA2, XLC-25-H-DA2N, XLC-25-H-DA2S and XLC-25-H-DA2SN.

  • single output
  • output: 25W
  • input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC
  • maximal input inrush current: 10A
  • leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • operating temperature: -25 to +90°C
XLC-25-H-DA2S, Mean Well LED drivers, 25W, constant power/voltage, dimmable, DALI 2.0 interface, XLC-25 series

XLC-25-H-DA2S

245533 XLC-25-H-DA2S XLC-25-H-DA2S Mean Well LED driver series XLC-25. LED drivers in a plastic housing with 25W, a DALI-2 interface, a&nbsp;dimming function, a strain relief (XLC-25-_S_) and an NFC function (XLC-25-DA2_N). These devices have&nbsp;a built-in active PFC function, a low no-load power (&lt;0,5W) and are protected against short circuit as well as overtemperature. They are suitable for LED lighting applications and&nbsp;comply with&nbsp;EN62386-101/102/207, EN61347-1, EN61347-2-13, EN61547, EN55015 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;XLC-25-H-DA2, XLC-25-H-DA2N, XLC-25-H-DA2S and XLC-25-H-DA2SN. single output output: 25W input voltage: 100 to 305V AC (47 to 63Hz), 141 to 431V DC maximal input inrush current: 10A leakage current: &lt;0,75mA withstand voltage I/P-O/P:&nbsp;3750V AC operating temperature: -25 to +90&deg;C

Specifications

manufacturer
Manufacturer's name XLC-25-H-DA2S
Output voltage [V] 9...54
Efficiency [%] 88
Output current [A] 0,3...1,05
Output power [W] 25
Data Sheet

Unit price

20,49 €

Volume discounts

Quantity Unit price
50 + 18,99 €

Stock: 45
Next incoming goods:
CW 05/2025
60 units

Further delivery:
CW 11/2025
