XBG-240-A-C

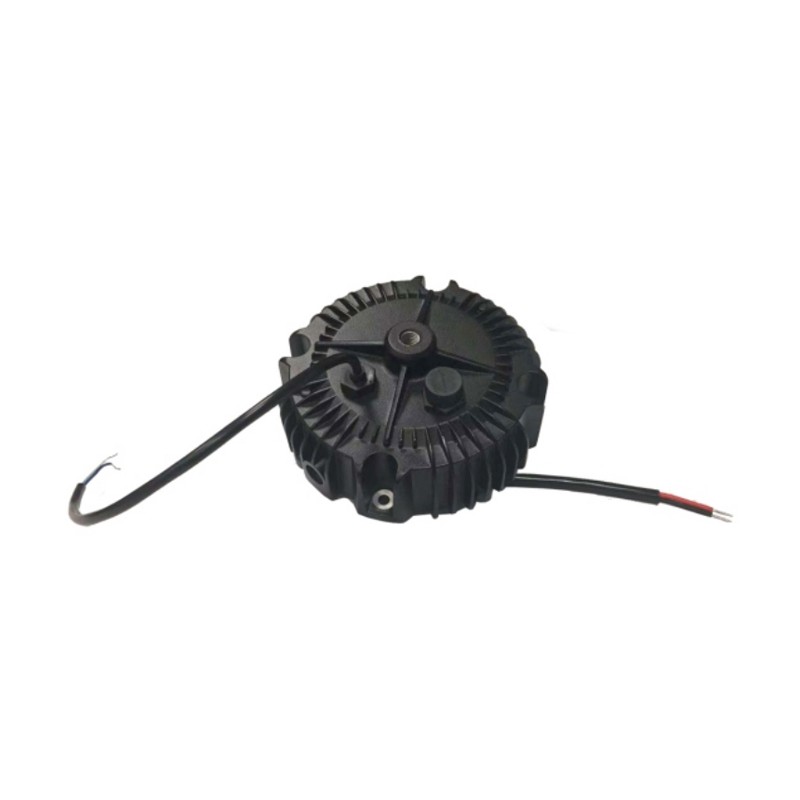

Mean Well LED driver series XBG-240

LED drivers in a circular metal housing (IP67) with 240W, a constant power and a potentiometer for adjusting the output power. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C, EN61000-3-3 as well as EN55015. We offer the following types of this Mean Well series: XBG-240-A and XBG-240-A-C.

  • single output
  • output: 240W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø176x65mm
  • weight: 1920g

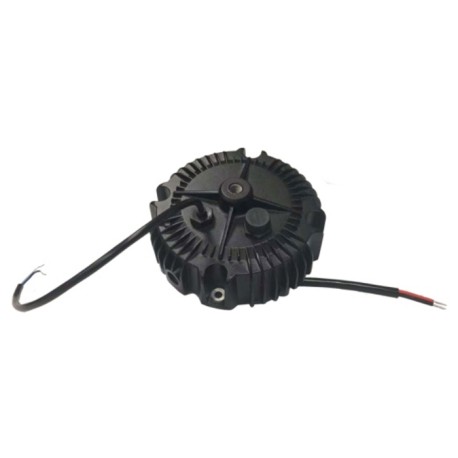

XBG-240-A-C, Mean Well LED drivers, 240W, IP67, constant power, adjustable, circular housing, XBG-240 series

XBG-240-A-C

244865 XBG-240-A-C XBG-240-A-C 4711287457598 Mean Well LED driver series XBG-240. LED drivers in a circular metal housing (IP67) with 240W, a constant power and a potentiometer for adjusting the output power. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C, EN61000-3-3 as well as EN55015. We offer the following types of this Mean Well series: XBG-240-A and XBG-240-A-C. single output output: 240W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: Ø176x65mm weight: 1920g

Specifications

manufacturer
Manufacturer's name XBG-240-A-C
GTIN 4711287457598
Output voltage [V] 30...60
Output current tolerance [%] ±5
Efficiency [%] 93
Output current [A] 2...5,7
Output power [W] 240
Data Sheet

Unit price

46,19 €

Stock: 0
Further delivery:
CW 11/2025
