XBG-240-AB

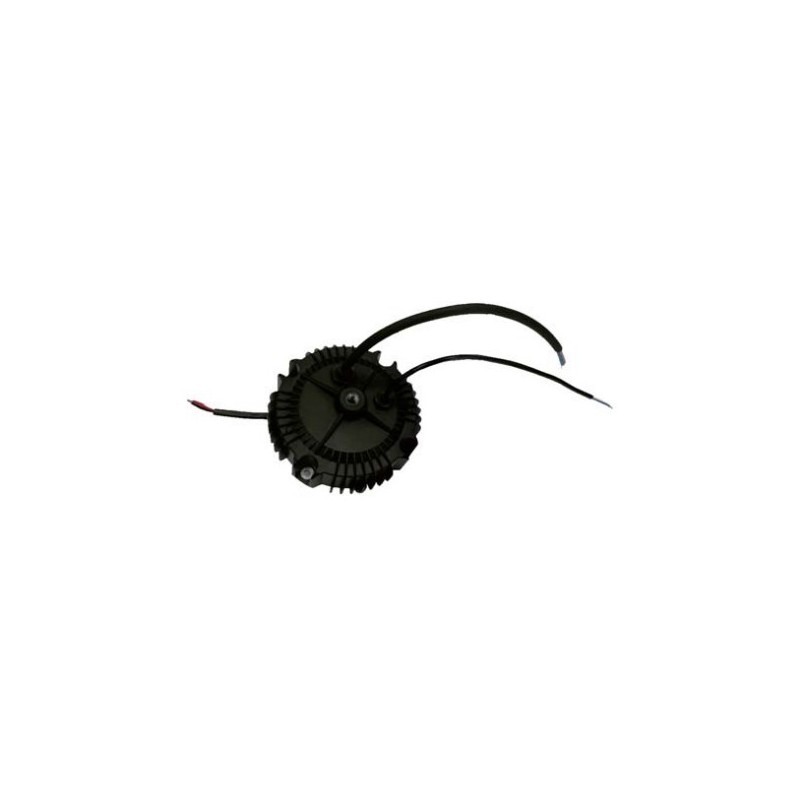

Mean Well LED driver series XBG-240

LED drivers in a round shaped metal case (IP67) with a control line for dimming, a wide input range, 240W and a constant power. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They have a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) as well as a built-in active PFC function, are suitable for LED lighting applications and have a built-in potentiometer for adjusting the output power. We offer the following types of this Mean Well series: XBG-240-AB and XBG-240-AB-C.

  • single output
  • output: 240W
  • input voltage: 100 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 65A
  • maximal leakage current: <0,75mA
  • withstand votlage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • weight: 1920g

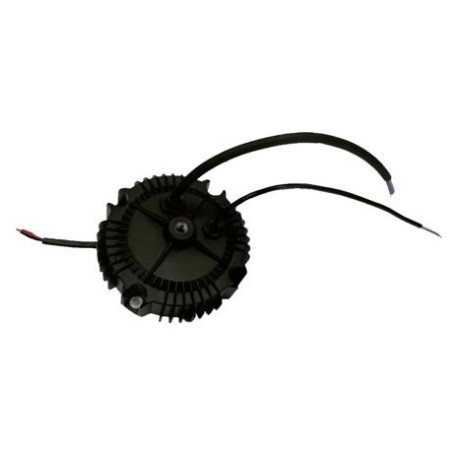

XBG-240-AB, Mean Well LED switching power supplies, 240W, constant power, IP67, dimmable, XBG-240 series

XBG-240-AB

137204 XBG-240-AB XBG-240-AB 4711287457574 Mean Well LED driver series XBG-240. LED drivers in a round shaped metal case (IP67) with a control line for dimming, a wide input range, 240W and a constant power. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3. They have a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) as well as a built-in active PFC function, are suitable for LED lighting applications and have a built-in potentiometer for adjusting the output power. We offer the following types of this Mean Well series: XBG-240-AB and XBG-240-AB-C. single output output: 240W input voltage: 100 to 305V AC (47 to 63Hz) maximal input inrush current: 65A maximal leakage current: &lt;0,75mA withstand votlage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85&deg;C weight: 1920g

Specifications

manufacturer
Manufacturer's name XBG-240-AB
GTIN 4711287457574
Output current tolerance [%] ±5
Efficiency [%] 93
Output current range [A] 2...5,7
Output power [W] 240
Output voltage range [V] 30...60
Data Sheet

Unit price

56,79 €

Volume discounts

Quantity Unit price
50 + 55,59 €

Stock: 2
Further delivery:
CW 16/2025
