XBG-160-A

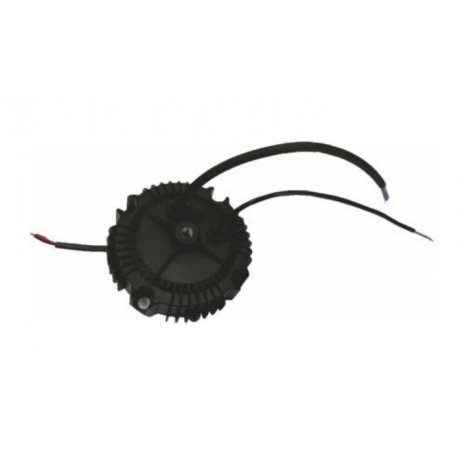

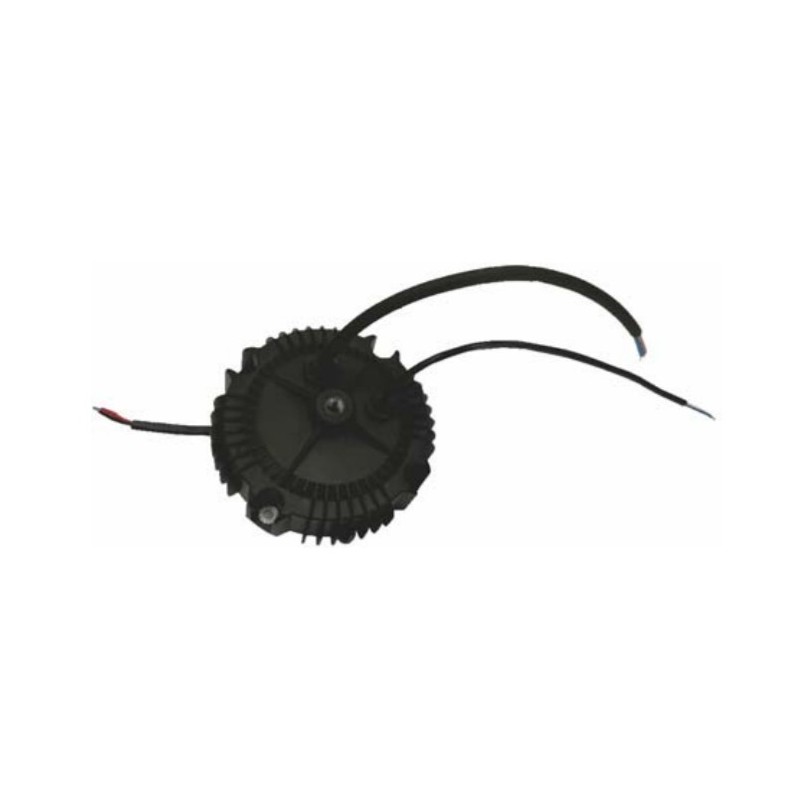

Mean Well LED driver series XBG-160

LED drivers in a round metal housing (IP67) with a constant power, an AC input (with cable) and 160W. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a built-in potentiometer for adjusting the output power as well as a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: XBG-160-A and XBG-160-A-C.

  • single output
  • output: 159,9W
  • input voltage: 90 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 1250g
Mean Well XBG-160 series

XBG-160-A

113393 XBG-160-A XBG-160-A 4711287457529 Mean Well LED driver series XBG-160. LED drivers in a round metal housing (IP67) with a constant power, an AC input (with cable) and 160W. These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C as well as EN61000-3-3 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They have a built-in potentiometer for adjusting the output power as well as a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: XBG-160-A and XBG-160-A-C. single output output: 159,9W input voltage: 90 to 305V AC (47 to 63Hz) maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 1250g

Specifications

manufacturer
Manufacturer's name XBG-160-A
GTIN 4711287457529
Output current tolerance [%] 5
Efficiency [%] 93
Output current range [A] 1,425...4,1
Output power [W] 159,9
Output voltage range [V] 34...56
Data Sheet

Unit price

37,59 €

Volume discounts

Quantity Unit price
50 + 36,79 €

Stock: 32
Further delivery:
CW 16/2025
