XBG-100-AB-C

Mean Well LED driver series XBG-100

LED drivers in a round shaped metal case (IP67) with a constant power, a wide input range and 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer). These devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the type XBG-100-AB as well as the version XBG-100-AB-C of this Mean Well series.

  • single output
  • output: 100W
  • input voltage: 90 to 305V AC (47 to 63Hz)
  • maximal input inrush current: 50A
  • maximal leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • weight: 800g

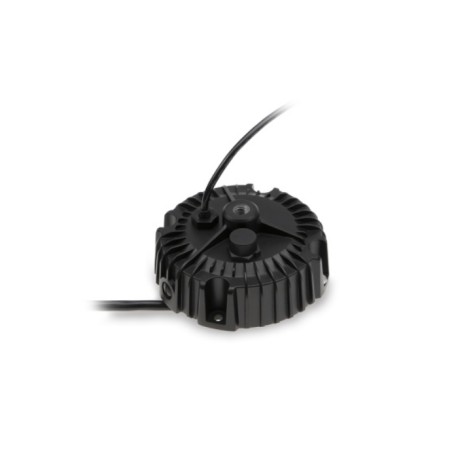

XBG-100-AB-C, Mean Well LED drivers, 100W, IP67, constant power, dimmable, XBG-100 series

XBG-100-AB-C

244856 XBG-100-AB-C XBG-100-AB-C 4711287457505 Mean Well LED driver series XBG-100. LED drivers in a round shaped metal case (IP67) with a constant power, a wide input range and 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer). These devices comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the type XBG-100-AB as well as the version XBG-100-AB-C of this Mean Well series. single output output: 100W input voltage: 90 to 305V AC (47 to 63Hz) maximal input inrush current: 50A maximal leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C weight: 800g

Specifications

manufacturer
Manufacturer's name XBG-100-AB-C
GTIN 4711287457505
Output current tolerance [%] ±5
Efficiency [%] 92
Output current range [A] 0,875...2,78
Output power [W] 100
Output voltage range [V] 27...52
Data Sheet

Unit price

27,19 €

Stock: 0
Further delivery:
CW 16/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
