XBG-100-A-C

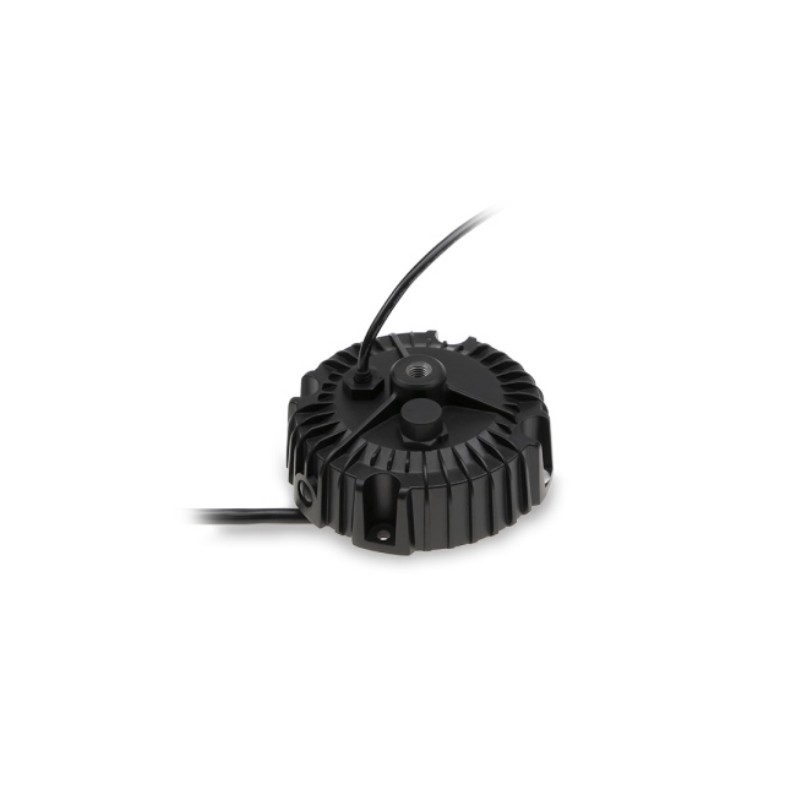

Mean Well LED driver series XBG-100

LED drivers in a circular metal housing (IP67) with 100W, a constant power and a potentiometer fod adjusting the output power. These devices have a built-in active PFc function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: XBG-100-A and XBG-100-A-C.

  • single output
  • output: 100W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 50A
  • leakage current: <0,75mA
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: Ø130x56mm
  • weight: 800g

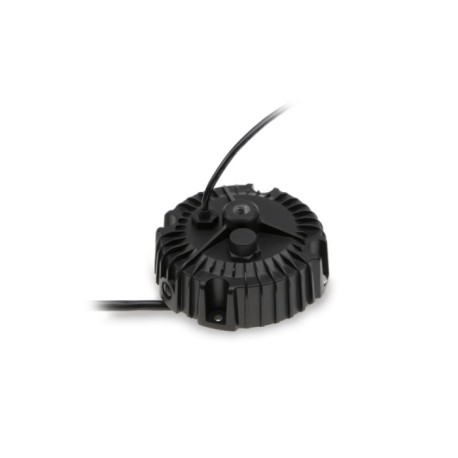

XBG-100-A-C, Mean Well LED drivers, 100W, IP67, constant power, adjustable, circular housing, XBG-100 series

XBG-100-A-C

244855 XBG-100-A-C XBG-100-A-C 4711287457512 Mean Well LED driver series XBG-100. LED drivers in a circular metal housing (IP67) with 100W, a constant power and a potentiometer fod adjusting the output power. These devices have a built-in active PFc function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: XBG-100-A and XBG-100-A-C. single output output: 100W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 50A leakage current: &lt;0,75mA no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: Ø130x56mm weight: 800g

Specifications

manufacturer
Manufacturer's name XBG-100-A-C
GTIN 4711287457512
Output current tolerance [%] ±5
Efficiency [%] 92
Output current range [A] 0,875...2,78
Output power [W] 100
Output voltage range [V] 27...52
Data Sheet

Unit price

24,99 €

Stock: 0
Further delivery:
CW 11/2025

Minimum order quantity 1.000 units or
multiples of 1.000.
