WDR-480-48

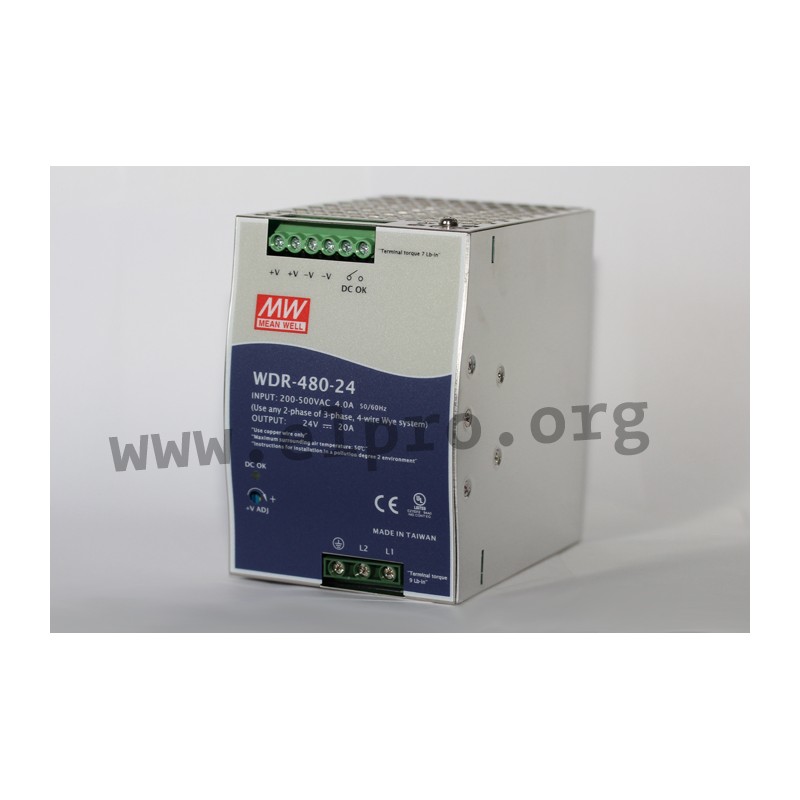

Mean Well DIN rail power supply series WDR-480

Switching power supplies in an enclosed housing with 480W, a built-in DC OK relay contact, a universal input, a two phase input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting and comply with EN61000-6-2, EN50082-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2, EN61000-3-3 as well as EN55024. We offer the following types of this Mean Well series: WDR-480-24 and WDR-480-48.

  • single output
  • output: 480W
  • input voltage: 180 to 550V AC (47 to 63Hz), 254 to 780V DC
  • maximal input inrush current: 50A
  • leakage current: <3,5mA
  • output voltage adjustment: +15%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1700g

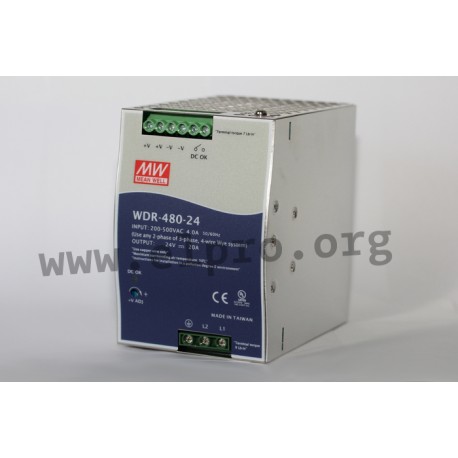

Meanwell WDR-480 series

WDR-480-48

35598 WDR-480-48 WDR-480-48 4711287422626 Mean Well DIN rail power supply series WDR-480. Switching power supplies in an enclosed housing with 480W, a built-in DC OK relay contact, a universal input, a two phase input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting and comply with EN61000-6-2, EN50082-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2, EN61000-3-3 as well as EN55024. We offer the following types of this Mean Well series: WDR-480-24 and WDR-480-48. single output output: 480W input voltage: 180 to 550V AC (47 to 63Hz), 254 to 780V DC maximal input inrush current: 50A leakage current: &lt;3,5mA output voltage adjustment: +15% overload protection: 105 to 130% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 1700g

Specifications

manufacturer
Manufacturer's name WDR-480-48
GTIN 4711287422626
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 93
Output current range [A] 0...10
Output voltage tolerance: [%] 1
Output power [W] 480
Ripple [mVp-p] 150
Data Sheet

Unit price

143,69 €

Volume discounts

Quantity Unit price
50 + 140,69 €

Stock: 47
Next incoming goods:
CW 17/2025
56 units

Further delivery:
CW 17/2025
