WDR-240-48

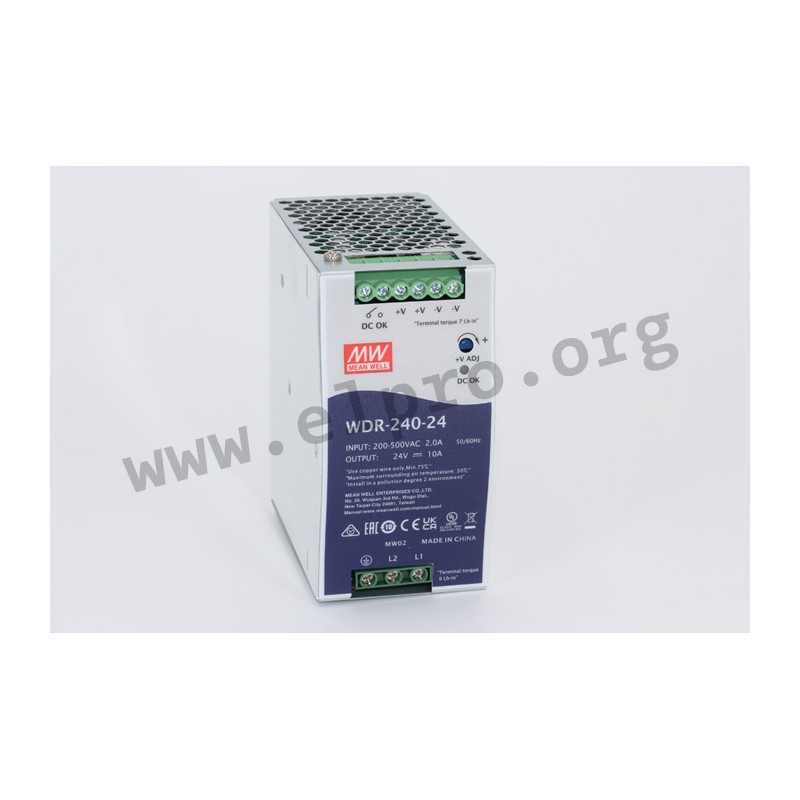

Mean Well DIN rail power supply series WDR-240

Switching power supplies in an enclosed housing with 240W, a built-in DC OK relay contact, a universal input and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a single / two phase input and comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: WDR-240-24 and WDR-240-48.

  • single output
  • output: 240W
  • input voltage: 180 to 550V AC (47 to 63Hz), 254 to 780V DC
  • maximal input inrush current: 50A
  • leakage current: <3,5mA
  • output voltage adjustment: +15%
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1060g
WDR-240-48, Mean Well DIN rail switching power supplies, 240W, 2-phase input, WDR-240 series

WDR-240-48

36137 WDR-240-48 WDR-240-48 4711287422602 Mean Well DIN rail power supply series WDR-240. Switching power supplies in an enclosed housing with 240W, a built-in DC OK relay contact, a universal input and screw terminals (touch guard). These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a single / two phase input and comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: WDR-240-24 and WDR-240-48. single output output: 240W input voltage: 180 to 550V AC (47 to 63Hz), 254 to 780V DC maximal input inrush current: 50A leakage current: &lt;3,5mA output voltage adjustment: +15% overload protection: 105 to 130% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 1060g

Specifications

manufacturer
Manufacturer's name WDR-240-48
GTIN 4711287422602
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 91
Output current range [A] 0...5
Output voltage tolerance: [%] 1
Output power [W] 240
Ripple [mVp-p] 150
Data Sheet

Unit price

104,89 €

Volume discounts

Quantity Unit price
50 + 102,69 €

Stock: 38
Next incoming goods:
CW 17/2025
50 units

Further delivery:
CW 17/2025
