VFD-750C-230

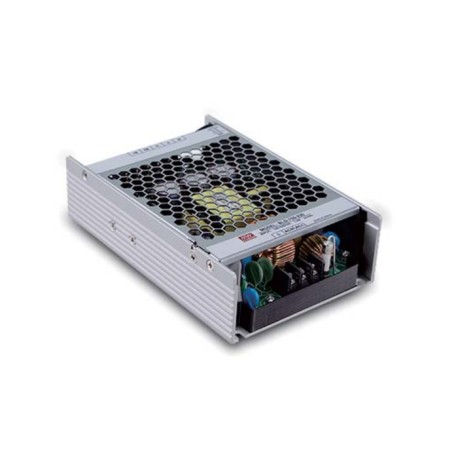

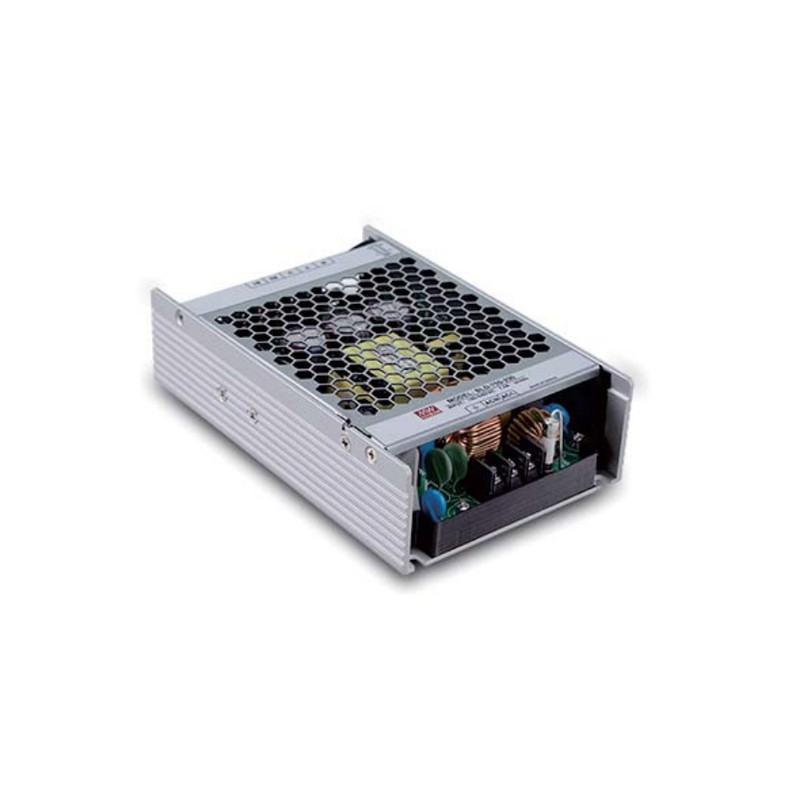

Mean Well variable frequency drive series VFD-750C-230

Variable frequency drives in an enclosed housing with 750W and a peak power capability of up to 200%. These devices have a built-in active PFC function, can be controlled with an external PWM signal and are protected against short circuit. They have sensors for monitoring bus voltage, current as well as temperature, are suitable for 3-phase motors and comply with EN61800-5-1 as well as EN61800-3 class A. We offer the type VFD-750C-230 of this Mean Well series.

  • output: 750W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 50A
  • leakage current: <2mA
  • operating temperature: -30 to +60°C
  • dimensions: 150x100x41mm
  • weight: 0,8kg
VFD-750C-230, Mean Well variable frequency drives, 750W, enclosed, VFD-750C-230 series

VFD-750C-230

244431 VFD-750C-230 VFD-750C-230 Mean Well variable frequency drive series VFD-750C-230. Variable frequency drives in an enclosed housing with 750W and a peak power capability of up to 200%. These devices have a built-in active PFC function, can be controlled with an external PWM signal and are protected against short circuit. They have sensors for monitoring bus voltage, current as well as temperature, are suitable for 3-phase motors and comply with EN61800-5-1 as well as EN61800-3 class A. We offer the type VFD-750C-230 of this Mean Well series. output: 750W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 50A leakage current: &lt;2mA operating temperature: -30 to +60°C dimensions: 150x100x41mm weight: 0,8kg

Specifications

manufacturer
Manufacturer's name VFD-750C-230
Output voltage [V] 0...240
Efficiency [%] 93
Output current [A] 3
Output power [W] 750
Data Sheet

Unit price

74,39 €

Volume discounts

Quantity Unit price
50 + 71,89 €

Stock: 9
Further delivery:
CW 12/2025
