VFD-250P-48

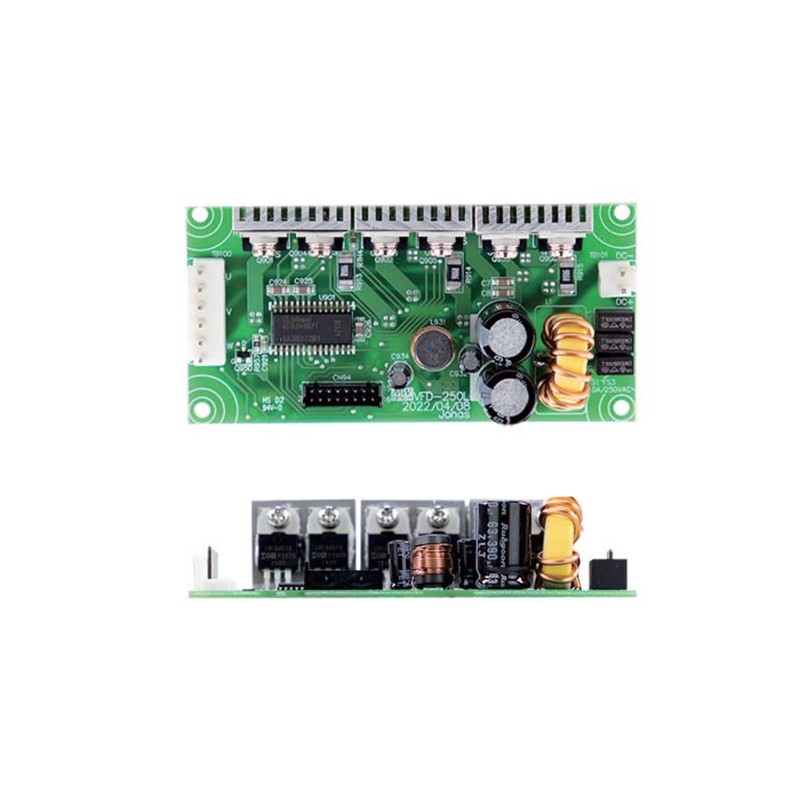

Mean Well frequency drive series VFD-250P-48

Variable frequency drives (VFDs) in a 4"x2" open frame housing (PCB) with 250W, a DC input voltage and a peak load capability of up to 200%. These devices are suitable for 3-phase motors, have a current sensor, a voltage sensor as well as a temperature sensor and are protected against short circuit. They can be controlled with an external PWM signal and comply with EN61800-5-1 as well as EN61800-3 class A. We offer the type VFD-250P-48 of this Mean Well series.

  • output: 250W
  • input voltage: 20 to 55V DC
  • rated input current: 5,6A
  • operating temperature: -30 to +70°C
  • dimensions: 101,6x50,8x28,6mm
  • weight: 90g

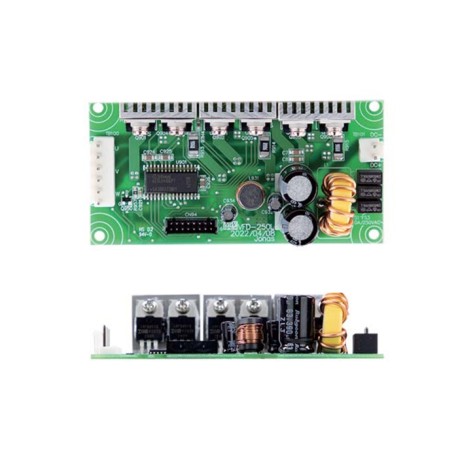

VFD-250P-48, Mean Well variable frequency drives, 250W, DC input, open frame (PCB), VFD-250P-48 series

VFD-250P-48

244426 VFD-250P-48 VFD-250P-48 Mean Well frequency drive series VFD-250P-48. Variable frequency drives (VFDs) in a 4"x2" open frame housing (PCB) with 250W, a DC input voltage and a peak load capability of up to 200%. These devices are suitable for 3-phase motors, have a current sensor, a voltage sensor as well as a temperature sensor and are protected against short circuit. They can be controlled with an external PWM signal and comply with EN61800-5-1 as well as EN61800-3 class A. We offer the type VFD-250P-48 of this Mean Well series. output: 250W input voltage: 20 to 55V DC rated input current: 5,6A operating temperature: -30 to +70°C dimensions: 101,6x50,8x28,6mm weight: 90g

Specifications

manufacturer
Manufacturer's name VFD-250P-48
Output voltage [V] 0...34
Efficiency [%] 93
Output current [A] 7,2
Output power [W] 250
Data Sheet

Unit price

18,79 €

Volume discounts

Quantity Unit price
50 + 17,49 €

Stock: 10
Further delivery:
CW 16/2025
