VFD-250P-230

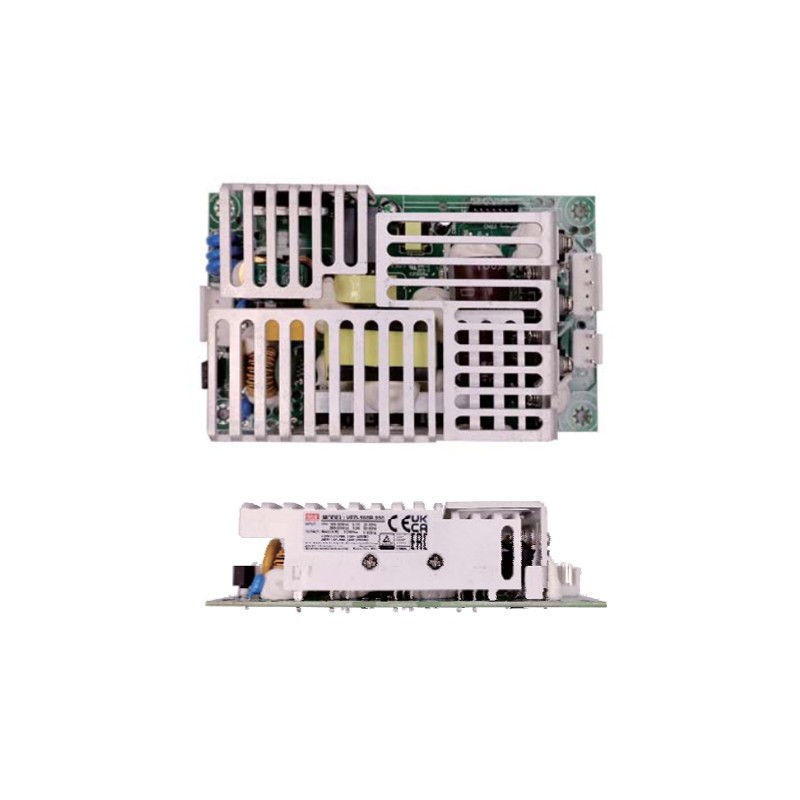

Mean Well variable frequency drive series VFD-250P-230

Variable frequency drives in an enclosed 5"x3" housing with 250W and a peak load capability of up to 200%. These devices have a built-in active PFC function, can be controlled with an external PWM signal and are protected against short circuit. They are suitable for 3-phase motors, have a current sensor, a voltage sensor as well as a temperature sensor and comply with EN61800-5-1 as well as EN61800-3 class A. We offer the type VFD-250P-230 of this Mean Well series.

  • output: 250W
  • input voltage: 90 to 264V AC (47 to 63Hz)
  • maximal input inrush current: 70A
  • leakage current: <2mA
  • operating temperature: -30 to +70°C
  • dimensions: 127x76,2x35mm
  • weight: 0,26kg

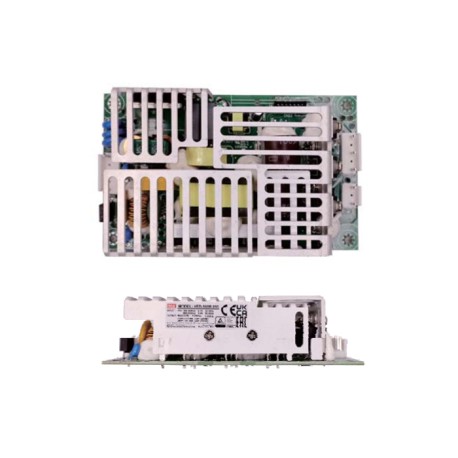

VFD-250P-230, Mean Well variable frequency drives, 250W, enclosed, VFD-250P-230 series

VFD-250P-230

244427 VFD-250P-230 VFD-250P-230 Mean Well variable frequency drive series VFD-250P-230. Variable frequency drives in an enclosed 5"x3" housing with 250W and a peak load capability of up to 200%. These devices have a built-in active PFC function, can be controlled with an external PWM signal and are protected against short circuit. They are suitable for 3-phase motors, have a current sensor, a voltage sensor as well as a temperature sensor and comply with EN61800-5-1 as well as EN61800-3 class A. We offer the type VFD-250P-230 of this Mean Well series. output: 250W input voltage: 90 to 264V AC (47 to 63Hz) maximal input inrush current: 70A leakage current: &lt;2mA operating temperature: -30 to +70°C dimensions: 127x76,2x35mm weight: 0,26kg

Specifications

manufacturer
Manufacturer's name VFD-250P-230
Output voltage [V] 0...240
Efficiency [%] 91,5
Output current [A] 1
Output power [W] 250
Data Sheet

Unit price

38,49 €

Volume discounts

Quantity Unit price
50 + 37,29 €

Stock: 10
Further delivery:
CW 02/2025
