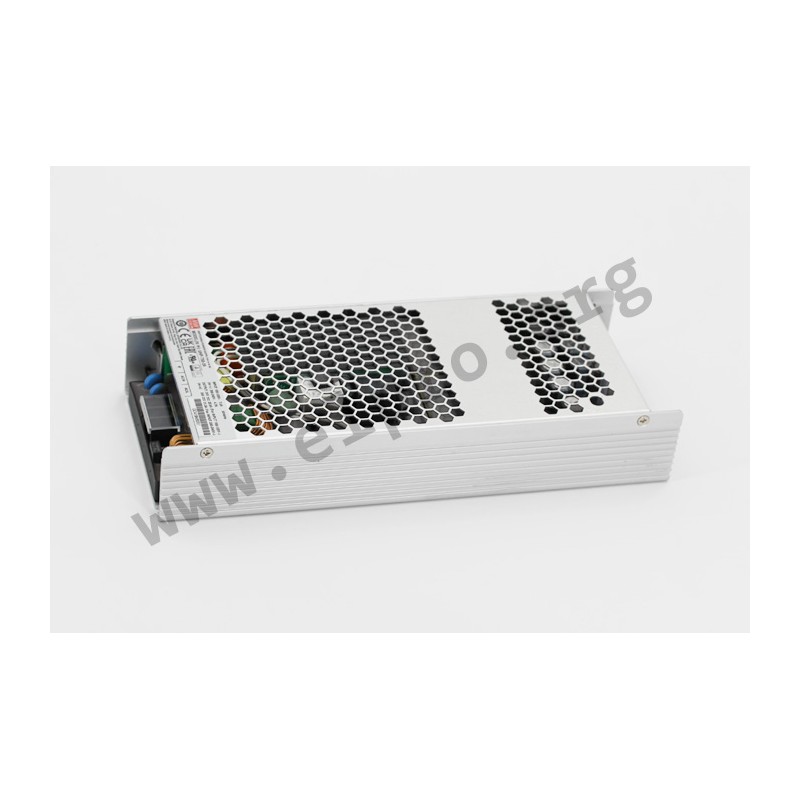

UHP-750-12

Mean Well power supply series UHP-750

Switching power supplies in an enclosed housing (U-bracket) with 750W, a slim/low profile (41mm height) and an LED indicator for power on. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a fanless design, are suitable for an operating altitude of up to 5000m and comply with EN60335-1 as well as EN61558-1. We offer the following types of this Mean Well series: UHP-750-12, UHP-750-24, UHP-750-36 and UHP-750-48.

  • single output
  • output: 720 to 753,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <0,75mA
  • overload protection: 105 to 125%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 1400g
UHP-750-12, Mean Well switching power supplies, 750W, U-bracket, PFC, UHP-750 series

UHP-750-12

113331 UHP-750-12 UHP-750-12 4711287432878 Mean Well power supply series UHP-750. Switching power supplies in an enclosed housing (U-bracket) with 750W, a slim/low profile (41mm height) and an LED indicator for power on. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They have a fanless design, are suitable for an operating altitude of up to 5000m and comply with EN60335-1 as well as EN61558-1. We offer the following types of this Mean Well series: UHP-750-12, UHP-750-24, UHP-750-36 and UHP-750-48. single output output: 720 to 753,6W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 40A leakage current: &lt;0,75mA overload protection: 105 to 125% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C weight: 1400g

Specifications

manufacturer
Manufacturer's name UHP-750-12
GTIN 4711287432878
Output voltage [V] 12
Efficiency [%] 93,5
Output current [A] 60
Output voltage tolerance: [%] 1
Output power [W] 720
Ripple [mVp-p] 150
Output voltage adjustment [V] 12...14,4
Data Sheet

Unit price

167,59 €

Volume discounts

Quantity Unit price
50 + 164,09 €

Stock: 10
Further delivery:
CW 12/2025
