UHP-500R-5

Mean Well power supply series UHP-500R

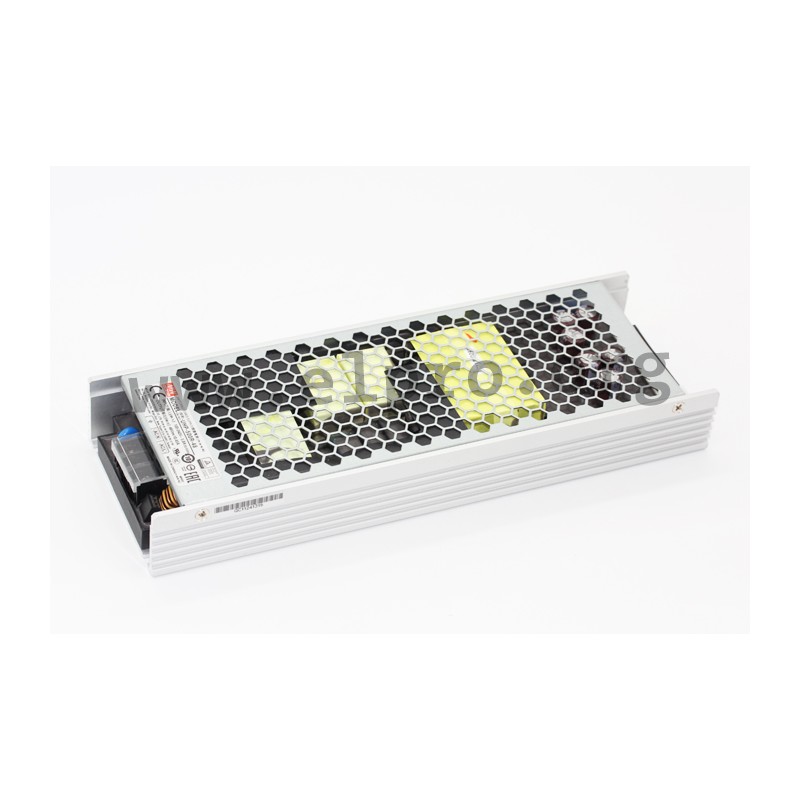

Switching power supplies in an enclosed U-bracket housing with 500W, a low profile (31mm), an LED indicator for power on, a peak load capability of 150% (100ms), a redundant function and a DC OK signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a fanless design, are suitable for an operating altitude of up to 5000m and comply with UL/EN62368-1, EN55032 class B as well as EN60335-1 (except for UHP-500R-55). We offer the following types of this Mean Well series: UHP-500R-5, UHP-500R-12, UHP-500R-24, UHP-500R-36, UHP-500R-48 and UHP-500R-55.

  • single output
  • output: 400 to 501,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -20 to +70°C
  • weight: 905g

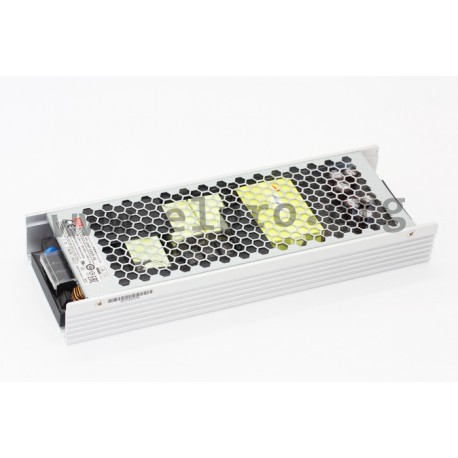

UHP-500R-5, Mean Well switching power supplies, 500W, redundant function, enclosed, UHP-500 series

UHP-500R-5

123945 UHP-500R-5 UHP-500R-5 4711287432793 Mean Well power supply series UHP-500R. Switching power supplies in an enclosed U-bracket housing with 500W, a low profile (31mm), an LED indicator for power on, a peak load capability of 150% (100ms), a redundant function and a DC OK signal. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a fanless design, are suitable for an operating altitude of up to 5000m and comply with UL/EN62368-1, EN55032 class B as well as EN60335-1 (except for UHP-500R-55). We offer the following types of this Mean Well series: UHP-500R-5, UHP-500R-12, UHP-500R-24, UHP-500R-36, UHP-500R-48 and UHP-500R-55. single output output: 400 to 501,6W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A leakage current: &lt;0,75mA overload protection: 110 to 140% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -20 to +70°C weight: 905g

Specifications

manufacturer
Manufacturer's name UHP-500R-5
GTIN 4711287432793
Output voltage [V] 5
Efficiency [%] 90
Output current [A] 80
Output voltage tolerance: [%] 2
Output power [W] 400
Output voltage adjustment [V] 4,5...5,5
Ripple [mVp-p] 200
Data Sheet

Unit price

90,89 €

Volume discounts

Quantity Unit price
50 + 87,79 €

Stock: 13
Further delivery:
CW 16/2025
