UHP-350R-4.2

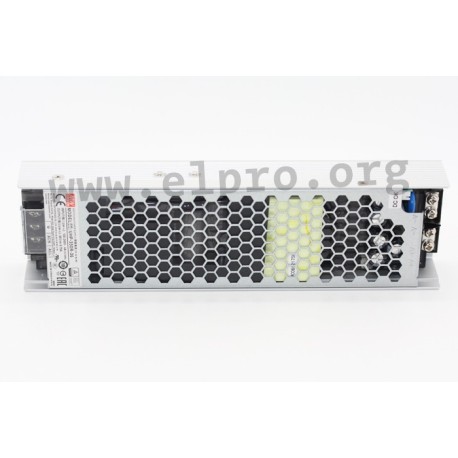

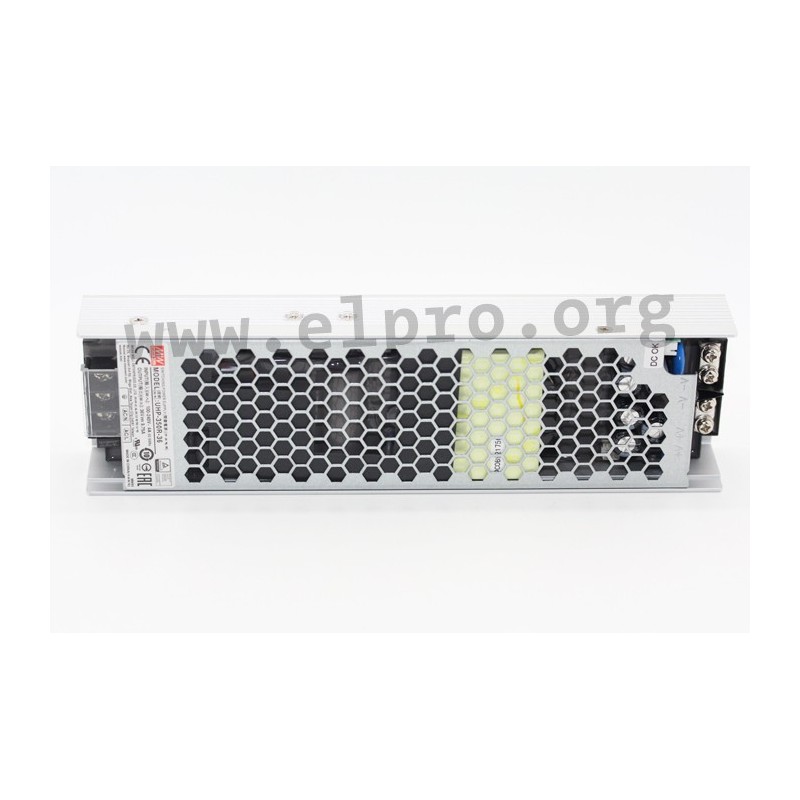

Mean Well power supply series UHP-350R

Switching power supplies in a metal case (U-bracket) with 350W, a universal input and a redundant function. These devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They have a DC OK active signal and comply with EN61000-3-2, -3, EN55032 as well as EN609501. We offer the following types of this Mean Well series: UHP-350R-3.3, UHP-350R-5, UHP-350R-12, UHP-350R-24, UHP-350R-36, UHP-350R-48 and UHP-350R-55.

  • single output
  • output: 198 to 351W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • maximal leakage current: 0,75mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 680g
UHP-350R-4.2, Mean Well switching power supplies, 350W, redundant function, enclosed, UHP-350 series

UHP-350R-4.2

244457 UHP-350R-4.2 UHP-350R-4.2 4711287432687 Mean Well power supply series UHP-350R. Switching power supplies in a metal case (U-bracket) with 350W, a universal input and a redundant function. These devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They have a DC OK active signal and comply with EN61000-3-2, -3, EN55032 as well as EN609501. We offer the following types of this Mean Well series: UHP-350R-3.3, UHP-350R-5, UHP-350R-12, UHP-350R-24, UHP-350R-36, UHP-350R-48 and UHP-350R-55. single output output: 198 to 351W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A maximal leakage current: 0,75mA overload protection: 110 to 140% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C weight: 680g

Specifications

manufacturer
Manufacturer's name UHP-350R-4.2
GTIN 4711287432687
Output voltage [V] 4,2
Efficiency [%] 89
Output current [A] 60
Output voltage tolerance: [%] 2
Output power [W] 252
Ripple [mVp-p] 150
Output voltage adjustment [V] 3,6...4,4
Data Sheet
