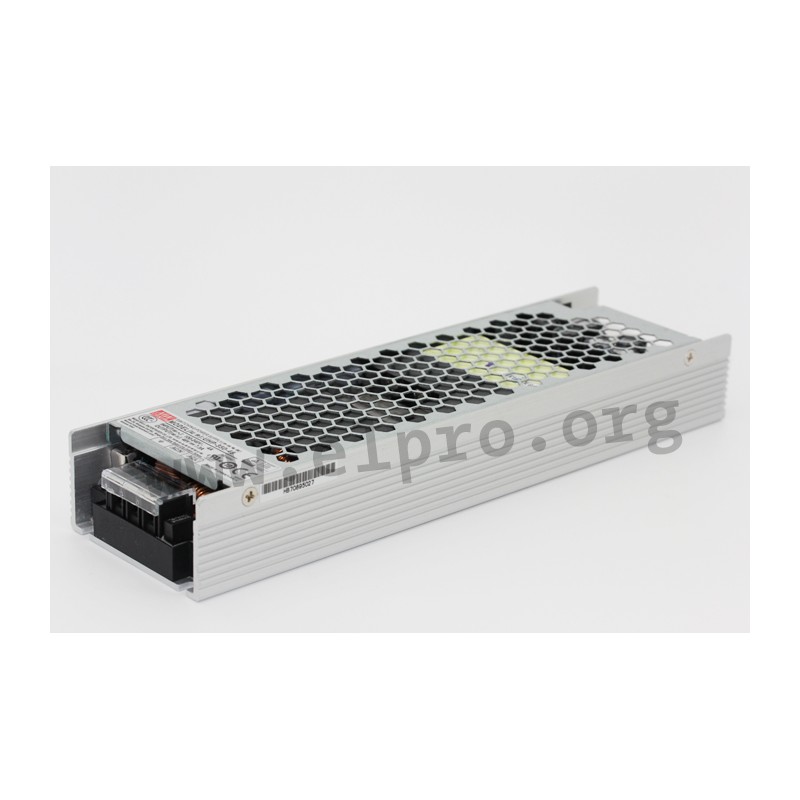

UHP-350-24

Mean Well power supply series UHP-350

Switching power supplies in an enclosed case (U-bracket) with 350W and a universal input. These devices have a built-in active PFC function and are protected against overload (autop recovery), overvoltage as well as overtemperature. They comply with EN55032 class B, EN55014, UL62368-1, EN62368-1 as well as EN60335-1 (except for UHP-350-55). We offer the following types of this Mean Well series: UHP-350-3.3, UHP-350-5, UHP-350-12, UHP-350-15, UHP-350-24, UHP-350-36, UHP-350-48 and UHP-350-55.

  • single output
  • output: 198 to 351W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • maximal leakage current: 0,75mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 680g

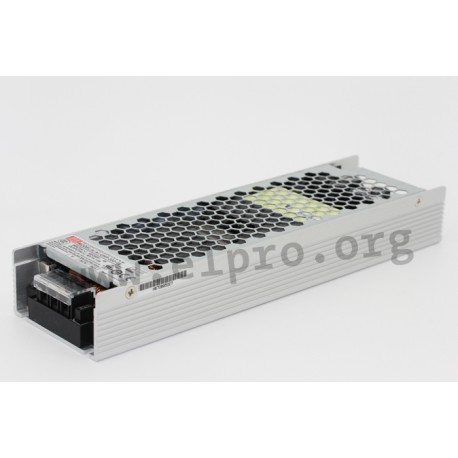

Meanwell UHP-350 series

UHP-350-24

110200 UHP-350-24 UHP-350-24 4711287432564 Mean Well power supply series UHP-350. Switching power supplies in an enclosed case (U-bracket) with 350W and a universal input. These devices have a built-in active PFC function and are protected against overload (autop recovery), overvoltage as well as overtemperature. They comply with EN55032 class B, EN55014, UL62368-1, EN62368-1 as well as EN60335-1 (except for UHP-350-55). We offer the following types of this Mean Well series: UHP-350-3.3, UHP-350-5, UHP-350-12, UHP-350-15, UHP-350-24, UHP-350-36, UHP-350-48 and UHP-350-55. single output output: 198 to 351W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A maximal leakage current: 0,75mA overload protection: 110 to 140% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C weight: 680g

Specifications

manufacturer
Manufacturer's name UHP-350-24
GTIN 4711287432564
Output voltage [V] 24
Efficiency [%] 94
Output current [A] 14,6
Output voltage tolerance: [%] 1
Output power [W] 350,4
Ripple [mVp-p] 240
Output voltage adjustment [V] 22,8...25,2
Data Sheet

Unit price

50,39 €

Volume discounts

Quantity Unit price
50 + 49,19 €

Stock: 1558
Next incoming goods:
CW 05/2025
908 units

Further delivery:
CW 16/2025
