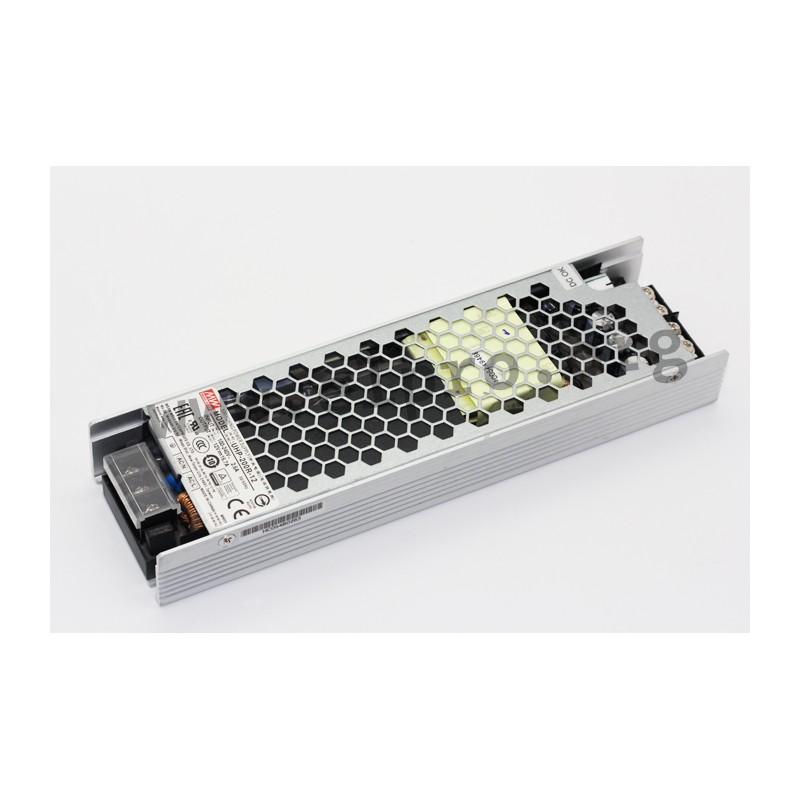

UHP-200R-36

Mean Well power supply series UHP-200

Switching power supplies in an enclosed housing (U-bracket) with 200W, a redundant function and a universal input. These devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They have a DC-OK signal and comply with EN61000-3-2,-3, EN55032 as well as EN60950-1. We offer the following types of this Mean Well series: UHP-200R-3.3, UHP-200R-5, UHP-200R-12, UHP-200R-24, UHP-200R-36, UHP-200R-48 and UHP-200R-55.

  • single output
  • output: 132 to 201,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 80A
  • maximal leakage current: 0,75mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 468g

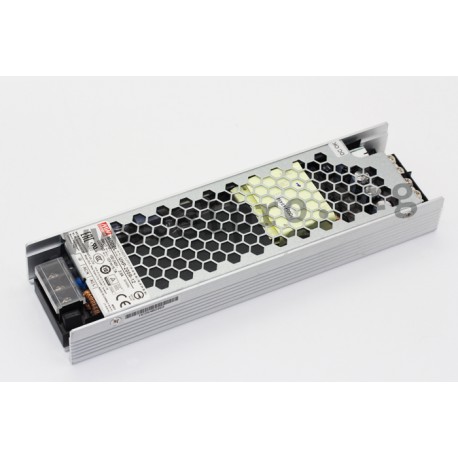

UHP-200R-36, Mean Well switching power supplies, 200W, redundant function, enclosed, UHP-200 series

UHP-200R-36

123936 UHP-200R-36 UHP-200R-36 4711287432496 Mean Well power supply series UHP-200. Switching power supplies in an enclosed housing (U-bracket) with 200W, a redundant function and a universal input. These devices have a built-in active PFC function and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. They have a DC-OK signal and comply with EN61000-3-2,-3, EN55032 as well as EN60950-1. We offer the following types of this Mean Well series: UHP-200R-3.3, UHP-200R-5, UHP-200R-12, UHP-200R-24, UHP-200R-36, UHP-200R-48 and UHP-200R-55. single output output: 132 to 201,6W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 80A maximal leakage current: 0,75mA overload protection: 110 to 140% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C weight: 468g

Specifications

manufacturer
Manufacturer's name UHP-200R-36
GTIN 4711287432496
Output voltage [V] 36
Efficiency [%] 94
Output current [A] 5,6
Output voltage tolerance: [%] 1
Output power [W] 201,6
Ripple [mVp-p] 240
Output voltage adjustment [V] 34,2...37,8
Data Sheet

Unit price

44,69 €

Volume discounts

Quantity Unit price
50 + 43,79 €

Stock: 7
Next incoming goods:
CW 07/2025
24 units

Further delivery:
CW 09/2025
