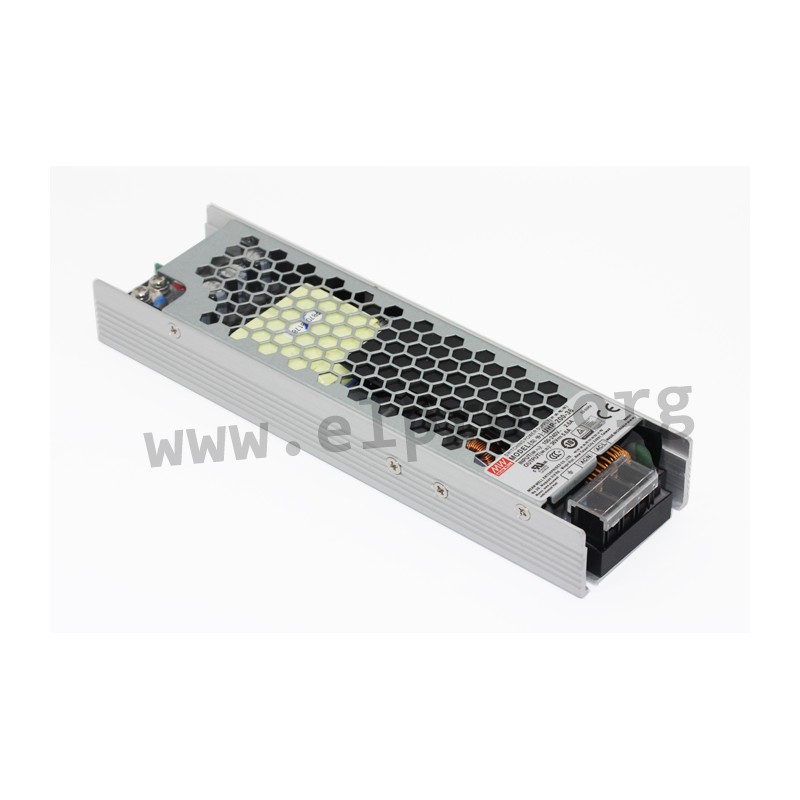

UHP-200-24

Mean Well power supply series UHP-200

Switching power supplies in an enclosed housing (U-bracket) with 200W and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as overtemperature. They are suitable for an operating altitude of up to 5000m and comply with EN55032 class B, EN55014, UL62368-1, EN62368-1 as well as EN60335-1 (except for UHP-200-55). We offer the following types of this Mean Well series: UHP-200-3.3, UHP-200-5, UHP-200-12, UHP-200-15, UHP-200-24, UHP-200-36, UHP-200-48 and UHP-200-55.

  • single output
  • output: 132 to 201,6W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 80A
  • maximal leakage current: 0,75mA
  • overload protection: 110 to 140%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand votlage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 468g

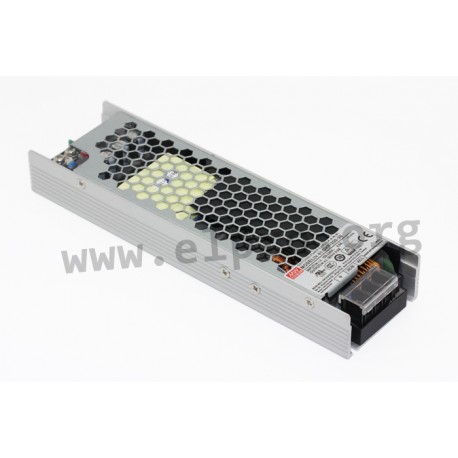

Meanwell UHP-200 series

UHP-200-24

110193 UHP-200-24 UHP-200-24 4711287432373 Mean Well power supply series UHP-200. Switching power supplies in an enclosed housing (U-bracket) with 200W and a universal input. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as overtemperature. They are suitable for an operating altitude of up to 5000m and comply with EN55032 class B, EN55014, UL62368-1, EN62368-1 as well as EN60335-1 (except for UHP-200-55). We offer the following types of this Mean Well series: UHP-200-3.3, UHP-200-5, UHP-200-12, UHP-200-15, UHP-200-24, UHP-200-36, UHP-200-48 and UHP-200-55. single output output: 132 to 201,6W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 80A maximal leakage current: 0,75mA overload protection: 110 to 140% withstand voltage I/P-O/P: 3750V AC withstand votlage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C weight: 468g

Specifications

manufacturer
Manufacturer's name UHP-200-24
GTIN 4711287432373
Output voltage [V] 24
Efficiency [%] 94
Output current [A] 8,4
Output voltage tolerance: [%] 1
Output power [W] 201,6
Output voltage adjustment [V] 22,8...25,2
Ripple [mVp-p] 240
Data Sheet

Unit price

36,09 €

Volume discounts

Quantity Unit price
50 + 35,09 €

Stock: 642
Next incoming goods:
CW 05/2025
504 units

Further delivery:
CW 17/2025
