UHP-1500-48CAN

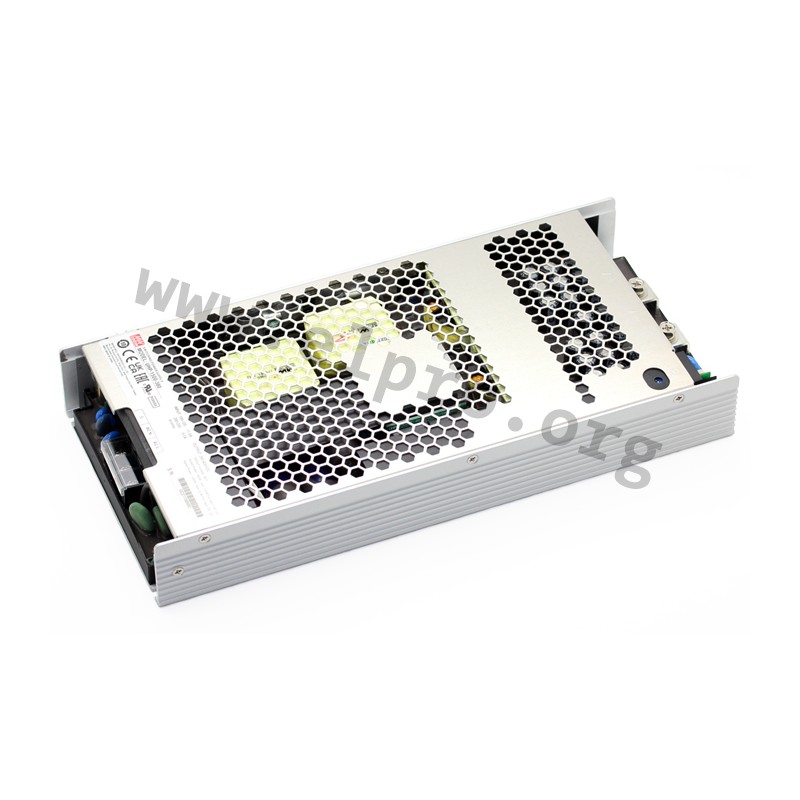

Mean Well power supply series UHP-1500

Switching power supplies in a metal housing (U-bracket) with 1500W, a PMBus interface (UHP-1500-_PM), a CAN bus interface (UHP-1500-_CAN), a DC OK signal and a universal input. These devices are protected against overload, overvoltage, short circuit as well as overtemperature. They have a fanless design and comply with EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: UHP-1500-24PM, UHP-1500-24CAN, UHP-1500-48PM and UHP-1500-48CAN.

  • single output
  • output: 1500 to 1512W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <0,75mA
  • overload protection: 105 to 120%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • dimensions: 290x140x41mm
  • weight: 2510g

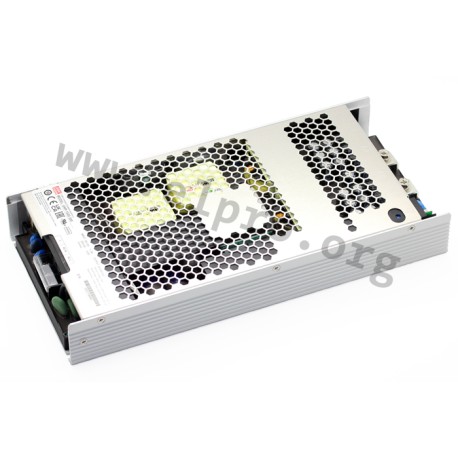

UHP-1500-48CAN, Mean Well switching power supplies, 1500W, U-bracket, PFC, CAN bus, PMBus, UHP-1500 series

UHP-1500-48CAN

244469 UHP-1500-48CAN UHP-1500-48CAN Mean Well power supply series UHP-1500. Switching power supplies in a metal housing (U-bracket) with 1500W, a PMBus interface (UHP-1500-_PM), a CAN bus interface (UHP-1500-_CAN), a DC OK signal and a universal input. These devices are protected against overload, overvoltage, short circuit as well as overtemperature. They have a fanless design and comply with EN62368-1, EN55032 class A as well as EN55032 class B. We offer the following types of this Mean Well series: UHP-1500-24PM, UHP-1500-24CAN, UHP-1500-48PM and UHP-1500-48CAN. single output output: 1500 to 1512W input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC maximal input inrush current: 60A leakage current: &lt;0,75mA overload protection: 105 to 120% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C dimensions: 290x140x41mm weight: 2510g

Specifications

manufacturer
Manufacturer's name UHP-1500-48CAN
Output voltage [V] 48
Efficiency [%] 96
Output current [A] 31,5
Output voltage tolerance: [%] 1
Output power [W] 1512
Output voltage adjustment [V] 48...57,6
Ripple [mVp-p] 350
Data Sheet

Unit price

319,59 €

Stock: 2
Further delivery:
CW 12/2025
