UHP-1500-48

Mean Well power supply series UHP-1500

Switching power supplies in a metal case (U-bracket) with a slim/low profile (41mm) and a universal input. These devices are contact-cooled and have a fanless design (free air convection). They have a built-in PFC function, are protected against short circuit, overload, overvoltage as well as overtemperature and comply with EN55032 class B as well as EN55032 class A. Both the output voltage and current are programmable. The UHP-1500 series has 5G anti-vibration capability. We offer the following types of this Mean Well series: UHP-1500-24 and UHP-1500-48.

  • single output
  • 1U low profile (41mm)
  • output: 1500 to 1512W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC
  • maximal input inrush current: 60A
  • maximal leakage current: 0,75mA
  • overload protection: 105 to 120%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • dimensions: 290x140x41mm
  • weight: 2510g

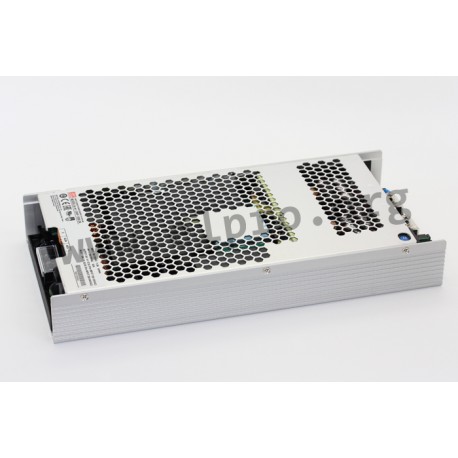

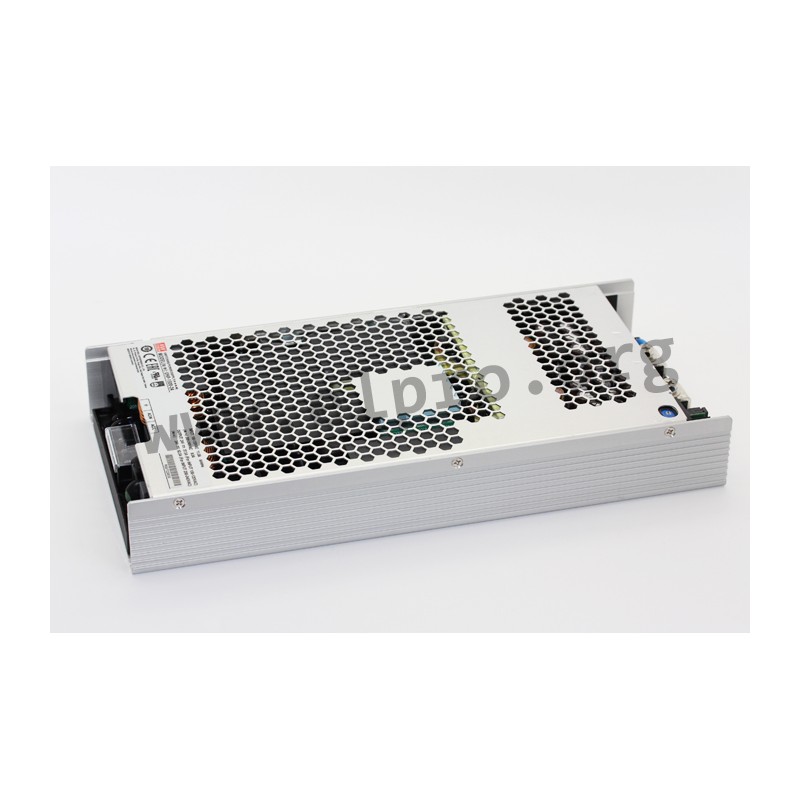

UHP-1500-48, Mean Well switching power supplies, 1500W, U-bracket, PFC, UHP-1500 series

UHP-1500-48

114307 UHP-1500-48 UHP-1500-48 4711287432960 Mean Well power supply series UHP-1500. Switching power supplies in a metal case (U-bracket) with a slim/low profile (41mm) and a universal input. These devices are contact-cooled and have a fanless design (free air convection). They have a built-in PFC function, are protected against short circuit, overload, overvoltage as well as overtemperature and comply with EN55032 class B as well as EN55032 class A. Both the output voltage and current are programmable. The UHP-1500 series has 5G anti-vibration capability. We offer the following types of this Mean Well series: UHP-1500-24 and UHP-1500-48. single output 1U low profile (41mm) output: 1500 to 1512W input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC maximal input inrush current: 60A maximal leakage current: 0,75mA overload protection: 105 to 120% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70°C dimensions: 290x140x41mm weight: 2510g

Specifications

manufacturer
Manufacturer's name UHP-1500-48
GTIN 4711287432960
Output voltage [V] 48
Efficiency [%] 96
Output current [A] 31,5
Output voltage tolerance: [%] 1
Output power [W] 1512
Output voltage adjustment [V] 48...57,6
Ripple [mVp-p] 350
Data Sheet

Unit price

340,09 €

Stock: 2
Next incoming goods:
CW 49/2024
24 units

Further delivery:
CW 12/2025
