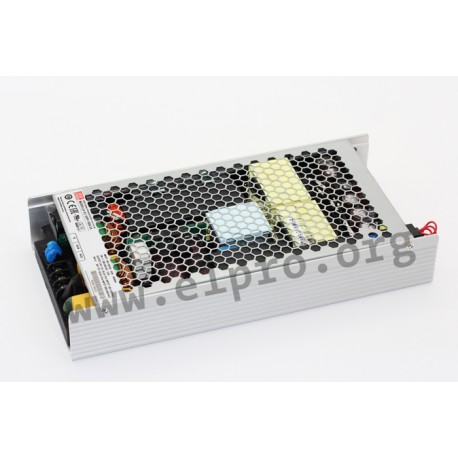

UHP-1000-36

Mean Well power supply series UHP-1000

Switching power supplies in an enclosed housing (U-bracket) with 1000W, a low profile (41mm), a fanless design and an LED indicator for power on. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for an operating altitude of up to 5000m and comply with EN60335-1 as well as EN61558-1. We offer the following types of this Mean Well series: UHP-1000-12, UHP-1000-24, UHP-1000-36 and UHP-1000-48.

  • single output
  • output: 960 to 1008W
  • input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC
  • maximal input inrush current: 40A
  • leakage current: <0,75mA
  • overload protection: 105 to 120%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1250V AC
  • operating temperature: -30 to +70°C
  • weight: 1740g
Mean Well UHP-1000 series

UHP-1000-36

113337 UHP-1000-36 UHP-1000-36 4711287432939 Mean Well power supply series UHP-1000. Switching power supplies in an enclosed housing (U-bracket) with 1000W, a low profile (41mm), a fanless design and an LED&nbsp;indicator for power on. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit.&nbsp;They are suitable for an&nbsp;operating altitude of up to&nbsp;5000m and comply with&nbsp;EN60335-1 as well as EN61558-1. We offer the&nbsp;following types of this Mean Well series:&nbsp;UHP-1000-12, UHP-1000-24, UHP-1000-36 and UHP-1000-48. single output output: 960 to 1008W input voltage: 90 to 264V AC (47 to 63Hz), 250 to 370V DC maximal input inrush current: 40A leakage current: &lt;0,75mA overload protection: 105 to 120% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1250V AC operating temperature: -30 to +70&deg;C weight: 1740g

Specifications

manufacturer
Manufacturer's name UHP-1000-36
GTIN 4711287432939
Output voltage [V] 36
Efficiency [%] 95,5
Output current [A] 28
Output voltage tolerance: [%] 1
Output power [W] 1008
Output voltage adjustment [V] 36...43,2
Ripple [mVp-p] 240
Data Sheet

Unit price

220,99 €

Volume discounts

Quantity Unit price
50 + 217,19 €

Stock: 21
Further delivery:
CW 12/2025
