TDR-960-48

Mean Well DIN rail power supply series TDR-960

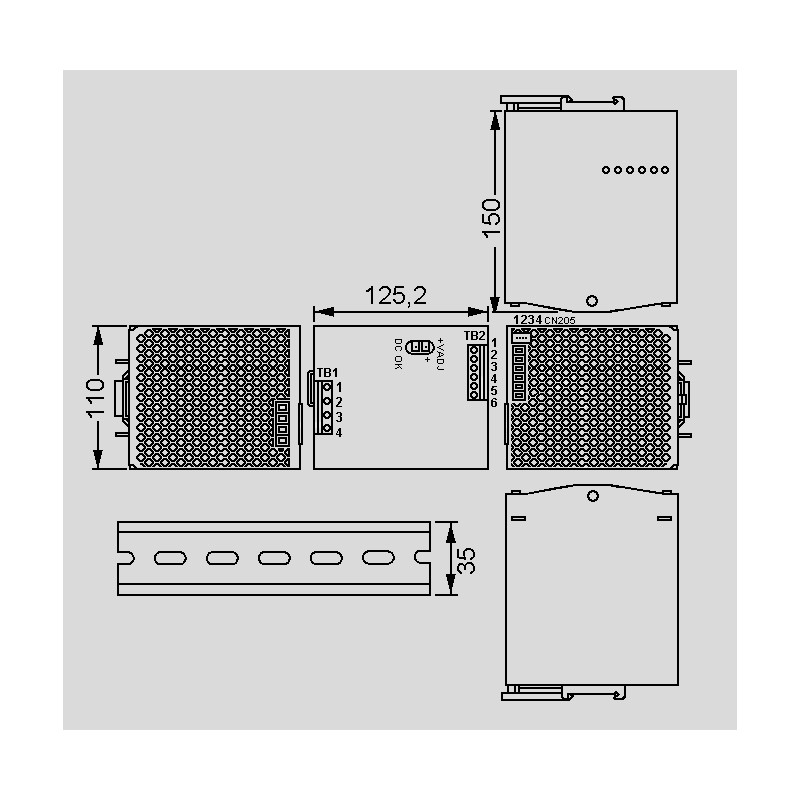

Switching power supplies in a slim housing (110mm width) with 960W, a built-in DC OK relay contact, a three-phase input, screw terminals (touch guard) and a parallel function (3+1/3840W). These devices are suitable for DIN rail mounting, have a fanless design and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in active PFC function and comply with EN62368-1, EN61000-6-2, EN50082-2, EN55032, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: TDR-960-24 and TDR-960-48.

  • single output
  • output: 960W
  • input voltage: 340 to 550V AC (47 to 63Hz), 480 to 780V DC
  • maximal input inrush current: 60A
  • leakage current: <3,5mA
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 2470g
Meanwell TDR-960 series

TDR-960-48

37907 TDR-960-48 TDR-960-48 4711287422510 Mean Well DIN rail power supply series TDR-960. Switching power supplies in a slim housing (110mm width) with 960W, a built-in DC OK relay contact, a three-phase input, screw terminals (touch guard) and a parallel function (3+1/3840W). These devices are suitable for DIN rail mounting, have a fanless design and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a built-in active PFC function and comply with EN62368-1, EN61000-6-2, EN50082-2, EN55032, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: TDR-960-24 and TDR-960-48. single output output: 960W input voltage: 340 to 550V AC (47 to 63Hz), 480 to 780V DC maximal input inrush current: 60A leakage current: &lt;3,5mA overload protection: 105 to 130% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 2470g

Specifications

manufacturer
Manufacturer's name TDR-960-48
GTIN 4711287422510
Output voltage [V] 48
Phase 3 phase
Efficiency [%] 94,5
Output current range [A] 0...20
Output voltage tolerance: [%] 1
Output power [W] 960
Ripple [mVp-p] 250
Data Sheet

Unit price

197,59 €

Volume discounts

Quantity Unit price
50 + 192,59 €

Stock: 215
Next incoming goods:
CW 12/2025
204 units

Further delivery:
CW 17/2025
