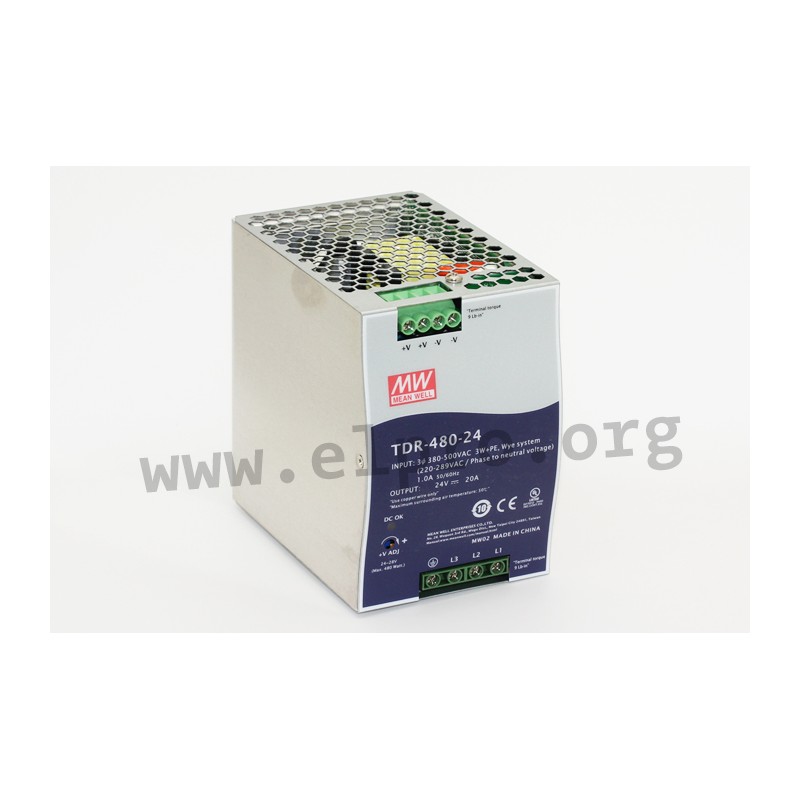

TDR-480-24

Mean Well DIN rail power supply series TDR-480

Switching power supplies in a slim housing (85,5mm width) with 480W, a three-phase input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting, have a fanless design and comply with EN50082-2, EN61000-6-2, EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: TDR-480-24 and TDR-480-48.

  • single output
  • output: 480W
  • input voltage: 340 to 550V AC (47 to 63Hz), 480 to 780V DC
  • maximal input inrush current: 50A
  • leakage current: <3,5mA
  • overload protection: 105 to 130%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 1510g

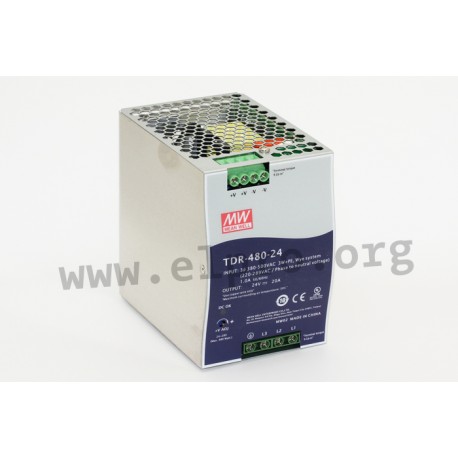

TDR-480-24

TDR-480-24

108615 TDR-480-24 TDR-480-24 4711287422480 Mean Well DIN rail power supply series TDR-480. Switching power supplies in a slim housing (85,5mm width) with 480W, a three-phase input and screw terminals (touch guard). These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for DIN rail mounting, have a fanless design and comply with&nbsp;EN50082-2, EN61000-6-2, EN62368-1, EN55032 class B, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;TDR-480-24 and TDR-480-48. single output output: 480W input voltage: 340 to 550V AC (47 to 63Hz), 480 to 780V DC maximal input inrush current: 50A leakage current: &lt;3,5mA overload protection: 105 to 130% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 1510g

Specifications

manufacturer
Manufacturer's name TDR-480-24
GTIN 4711287422480
Output voltage [V] 24
Efficiency [%] 92,5
Output current range [A] 0...20
Output voltage tolerance: [%] 1
Output power [W] 480
Ripple [mVp-p] 150
Data Sheet

Unit price

97,89 €

Volume discounts

Quantity Unit price
50 + 95,39 €

Stock: 335
