SPV-300-12

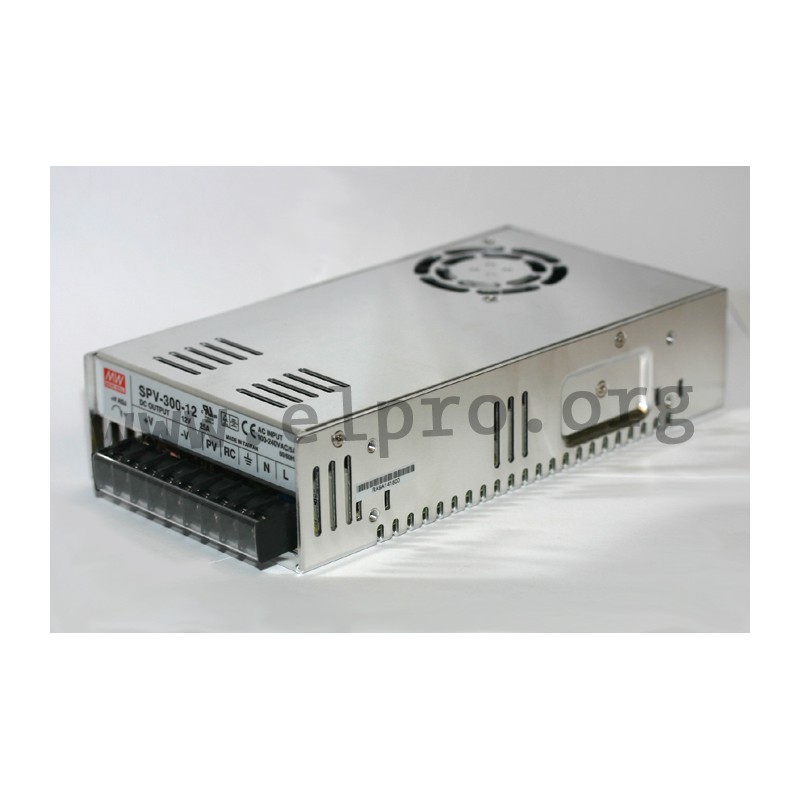

Mean Well power supply series SPV-300

Switching power supplies in an enclosed housing with 300W, screw terminals, a fan, a universal input and a built-in remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a programmable output voltage (20 to 110% / by an external control signal 1 to 1,5V DC) and comply with UL/EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SPV-300-12, SPV-300-24 and SPV-300-48.

  • single output
  • output: 300W
  • input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC
  • maximal input inrush current: 45A
  • leakage current: <1mA
  • overload protection: 105 to 135%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -20 to +65°C
  • weight: 1100g

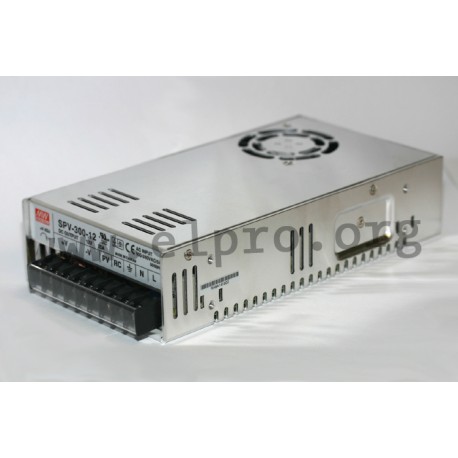

Meanwell SPV-300 series

SPV-300-12

35706 SPV-300-12 SPV-300-12 4711287420660 Mean Well power supply series SPV-300. Switching power supplies in an enclosed housing with 300W, screw terminals, a fan, a universal input and a built-in remote ON/OFF control. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a programmable output voltage (20 to 110% / by an external control signal 1 to 1,5V DC) and comply with UL/EN60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SPV-300-12, SPV-300-24 and SPV-300-48. single output output: 300W input voltage: 88 to 264V AC (47 to 63Hz), 124 to 370V DC maximal input inrush current: 45A leakage current: &lt;1mA overload protection: 105 to 135% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -20 to +65°C weight: 1100g

Specifications

manufacturer
Manufacturer's name SPV-300-12
GTIN 4711287420660
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 83,5
Output current range [A] 0...25
Output voltage tolerance: [%] 1
Output power [W] 300
Ripple [mV] 150
Data Sheet

Unit price

67,29 €

Volume discounts

Quantity Unit price
50 + 65,09 €

Stock: 66
Next incoming goods:
CW 51/2024
108 units

Further delivery:
CW 12/2025
