SPUN02L-15

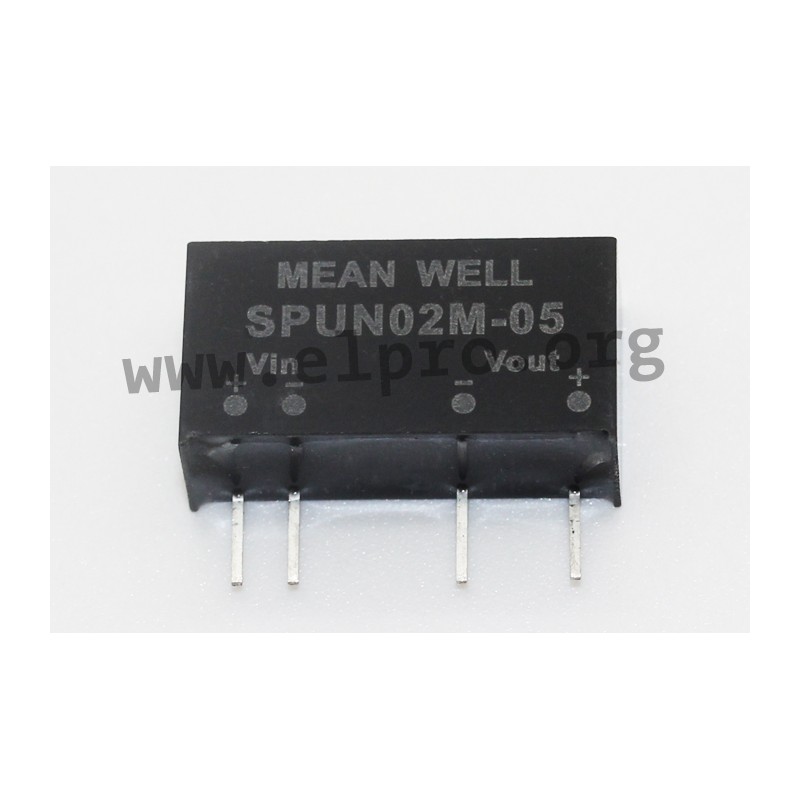

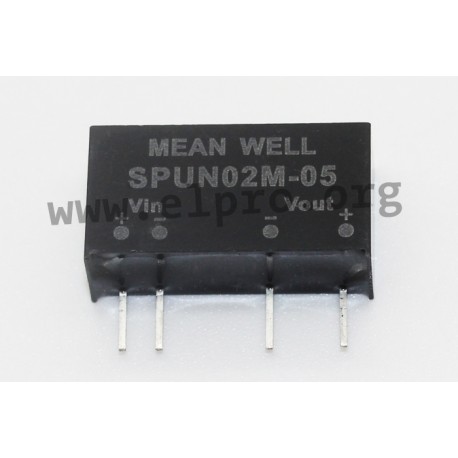

Mean Well DC/DC converter series SPUN02 and DPUN02

Isolated DC/DC converter modules with an unregulated output voltage in a SIL7 housing for direct PCB mounting. These devices are protected against both overload and short circuit (auto recovery) and have an input voltage ratio of 1:1. They also comply with the EN55032 standard. We offer the following versions of this Mean Well series: SPUN02L-05, SPUN02L-12, SPUN02L-15, DPUN02L-05, DPUN02L-12, DPUN02L-15, SPUN02M-05, SPUN02M-12, SPUN02M-15, DPUN02M-05, DPUN02M-12, DPUN02M-15, SPUN02N-05, SPUN02N-12, SPUN02N-15, DPUN02N-05, DPUN02N-12 and DPUN02N-15.

  • single output (SPUN_) and dual output (DPUN_)
  • output power: 2W
  • input voltage SPUN02L_/DPUN02L_: 4,5 to 5,5V
  • input voltage SPUN02M_/DPUN02M_: 10,8 to 13,2V
  • input voltage SPUN02N_/DPUN02N_: 21,6 to 26,4V
  • output voltage tolerance: ±3%
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +105°C
  • dimensions: 19,6x7,2x10,2mm
  • weight: 2,7g
SPUN02L-15, Mean Well DC/DC converters, 2W, SIL7 housing, SPUN02 and DPUN02 series

SPUN02L-15

114509 SPUN02L-15 SPUN02L-15 4711287479446 Mean Well DC/DC converter series SPUN02 and DPUN02. Isolated DC/DC converter modules with an unregulated output voltage in a SIL7 housing for direct PCB mounting. These devices are protected against both overload and short circuit (auto recovery) and have an input voltage ratio of 1:1. They also comply with the EN55032 standard. We offer the following versions of this Mean Well series: SPUN02L-05, SPUN02L-12, SPUN02L-15, DPUN02L-05, DPUN02L-12, DPUN02L-15, SPUN02M-05, SPUN02M-12, SPUN02M-15, DPUN02M-05, DPUN02M-12, DPUN02M-15, SPUN02N-05, SPUN02N-12, SPUN02N-15, DPUN02N-05, DPUN02N-12 and DPUN02N-15. single output (SPUN_) and dual output (DPUN_) output power: 2W input voltage SPUN02L_/DPUN02L_: 4,5 to 5,5V input voltage SPUN02M_/DPUN02M_: 10,8 to 13,2V input voltage SPUN02N_/DPUN02N_: 21,6 to 26,4V output voltage tolerance: ±3% withstand voltage: 3000V DC operating temperature: -40 to +105°C dimensions: 19,6x7,2x10,2mm weight: 2,7g

Specifications

manufacturer
Manufacturer's name SPUN02L-15
GTIN 4711287479446
Ripple & noise [mVrms] 100
Output voltage [V] 15
Input voltage range [V] 4,5...5,5
Output current range [mA] 0...134
Efficiency [%] 84
Data Sheet

Unit price

3,99 €

Volume discounts

Quantity Unit price
50 + 3,59 €

Stock: 10
Next incoming goods:
CW 03/2025
64 units

Further delivery:
CW 18/2025
