> Power supplies>Voltage converters>DC/DC converters, PCB mounting>Mean Well DC/DC converters, 3W, SIL7 housing, SPU03 series>SPU03L-05

Manufacturers

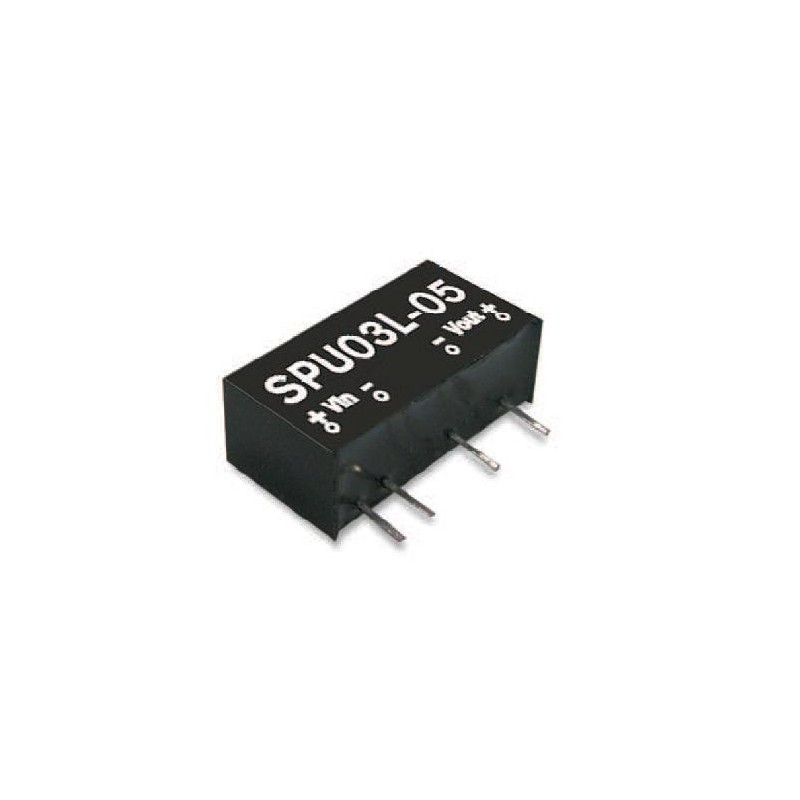

SPU03L-05

Mean Well DC/DC converter series SPU03

Unregulated DC/DC converters in a SIL7 plastic housing with 3W and a built-in EMI filter. These devices are suitable for PCB mounting and are protected against short circuit. They have a fanless design, a high reliability and comply with EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: SPU03L-05, SPU03L-12, SPU03L-15, SPU03M-05, SPU03M-12, SPU03M-15, SPU03N-05, SPU03N-12 and SPU03N-15.

  • single output
  • output: 3W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • weight: 2,9g
Meanwell SPU03 series

SPU03L-05

37689 SPU03L-05 SPU03L-05 4711287479330 Mean Well DC/DC converter series SPU03. Unregulated DC/DC converters in a SIL7 plastic housing with 3W and a built-in EMI filter. These devices are suitable for PCB mounting and are protected against short circuit. They have a fanless design, a high reliability and comply with EN55032 class B as well as EN61000-4-2. We offer the following types of this Mean Well series: SPU03L-05, SPU03L-12, SPU03L-15, SPU03M-05, SPU03M-12, SPU03M-15, SPU03N-05, SPU03N-12 and SPU03N-15. single output output: 3W output voltage tolerance: ±2% maximal ripple and noise: 50mVpp withstand voltage: 3000V DC operating temperature: -40 to +90°C weight: 2,9g

Specifications

manufacturer
Manufacturer's name SPU03L-05
GTIN 4711287479330
Case SIL 7 case
Input voltage [V] 5
Output voltage [V] 5
Output current range [mA] 60...600
Efficiency [%] 82
Data Sheet

Unit price

5,49 €

Volume discounts

Quantity Unit price
50 + 4,89 €

Stock: 196
Further delivery:
CW 18/2025
