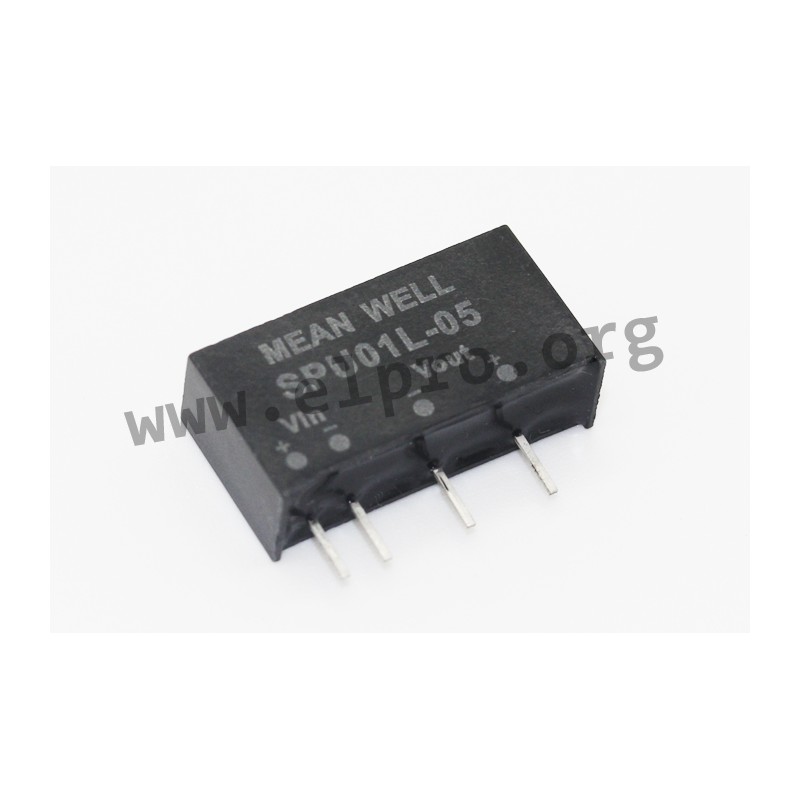

SPU01M-05

Mean Well DC/DC converter series SPU01

Unregulated DC/DC converters in a SIL6 housing with 1W and a high efficiency (up to 84%). These devices have an input voltage ratio of 1:1 and are protected against short circuit. They are suitable for direct PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SPU01L-05, SPU01L-12, SPU01L-15, SPU01M-05, SPU01M-12, SPU01M-15, SPU01N-05, SPU01N-12 and SPU01N-15.

  • single output
  • output: 1W
  • output voltage tolerance: ±3%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 1,8g
Mean Well SPU01 series

SPU01M-05

110286 SPU01M-05 SPU01M-05 4711287479187 Mean Well DC/DC converter series SPU01. Unregulated DC/DC converters in a SIL6 housing with 1W and a high efficiency (up to 84%). These devices have an input voltage ratio of 1:1 and are protected against short circuit. They are suitable for direct PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SPU01L-05, SPU01L-12, SPU01L-15, SPU01M-05, SPU01M-12, SPU01M-15, SPU01N-05, SPU01N-12 and SPU01N-15. single output output: 1W output voltage tolerance: ±3% maximal ripple and noise: 75mVpp withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 1,8g

Specifications

manufacturer
Manufacturer's name SPU01M-05
GTIN 4711287479187
Input voltage [V] 10,8...13,2
Output voltage [V] 5
Output current range [mA] 0...200
Efficiency [%] 81
Data Sheet

Unit price

2,89 €

Volume discounts

Quantity Unit price
50 + 2,59 €

Stock: 39
Further delivery:
CW 22/2025
