SPRN01M-05

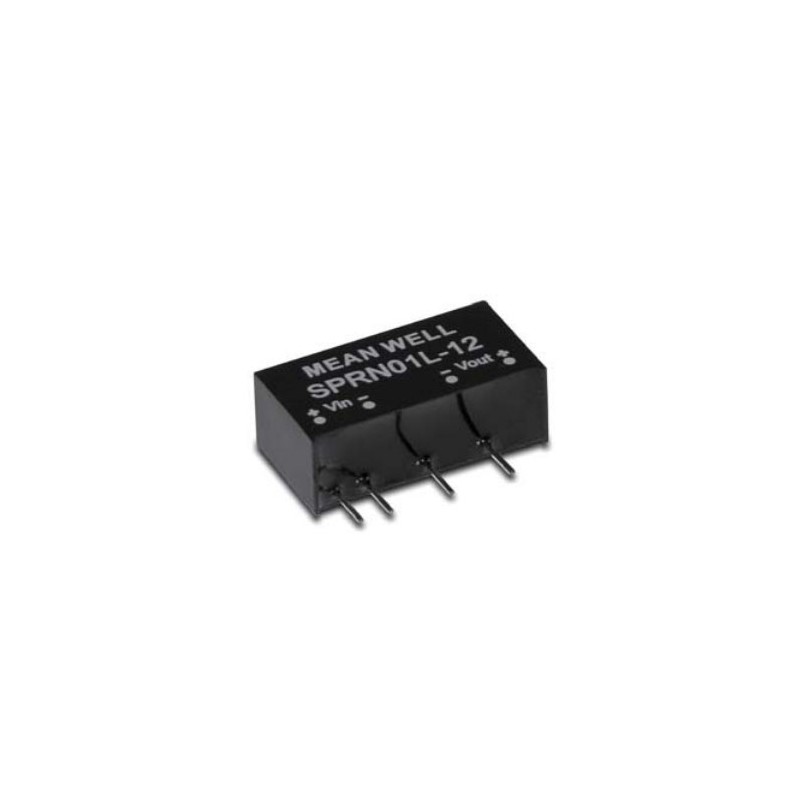

Mean Well DC/DC converter series SPRN01 and DPRN01

Isolated DC/DC converter modules in a SIL6 housing with 1W and an input voltage ratio of 2:1. These devices have a regulated output voltage and are protected against short circuit. They are suitable for direct PCB mounting and comply with EN55032 as well as EN61000-4-2. We offer the following types of this Mean Well series: SPRN01L-05, SPRN01L-12, SPRN01L-15, DPRN01L-12, DPRN01L-15, SPRN01M-05, SPRN01M-12, SPRN01M-15, DPRN01M-12, DPRN01M-15, SPRN01N-05, SPRN01N-12, SPRN01N-15, DPRN01N-12, DPRN01N-15, SPRN01O-05, SPRN01O-12, SPRN01O-15, DPRN01O-12 and DPRN01O-15.

  • single output (SPRN_) and dual output (DPRN_)
  • output power: 1W
  • input voltage SPRN01L_/DPRN01L_: 4,7 to 5,5V
  • input voltage SPRN01M_/DPRN01M_: 11,4 to 13,2V
  • input voltage SPRN01N_/DPRN01N_: 22,8 to 26,4V
  • input voltage SPRN01O_/DPRN01O_: 45,6 to 52,8V
  • output voltage tolerance: ±3%
  • maximal ripple and noise: 75mVp-p
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 2,5g
  • dimensions: 19,6x7,1x10,14mm

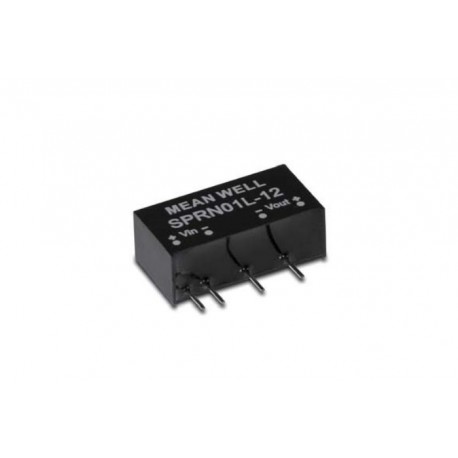

SPRN01M-05, Mean Well DC/DC converters, 1W, SIL6 housing, SPRN01 and DPRN01 series

SPRN01M-05

114489 SPRN01M-05 SPRN01M-05 4711287479033 Mean Well DC/DC converter series SPRN01 and DPRN01. Isolated DC/DC converter modules in a SIL6 housing with 1W and an input voltage ratio of 2:1. These devices have a regulated output voltage and are protected against short circuit. They are suitable for direct PCB mounting and comply with EN55032 as well as EN61000-4-2. We offer the following types of this Mean Well series: SPRN01L-05, SPRN01L-12, SPRN01L-15, DPRN01L-12, DPRN01L-15, SPRN01M-05, SPRN01M-12, SPRN01M-15, DPRN01M-12, DPRN01M-15, SPRN01N-05, SPRN01N-12, SPRN01N-15, DPRN01N-12, DPRN01N-15, SPRN01O-05, SPRN01O-12, SPRN01O-15, DPRN01O-12 and DPRN01O-15. single output (SPRN_) and dual output (DPRN_) output power: 1W input voltage SPRN01L_/DPRN01L_: 4,7 to 5,5V input voltage SPRN01M_/DPRN01M_: 11,4 to 13,2V input voltage SPRN01N_/DPRN01N_: 22,8 to 26,4V input voltage SPRN01O_/DPRN01O_: 45,6 to 52,8V output voltage tolerance: ±3% maximal ripple and noise: 75mVp-p withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 2,5g dimensions: 19,6x7,1x10,14mm

Specifications

manufacturer
Manufacturer's name SPRN01M-05
GTIN 4711287479033
Output voltage [V] 5
Input voltage range [V] 11,4...13,2
Output current range [mA] 0...200
Efficiency [%] 72
Data Sheet

Unit price

4,69 €

Volume discounts

Quantity Unit price
50 + 4,19 €

Stock: 45
Further delivery:
CW 18/2025
