SPOL-12N

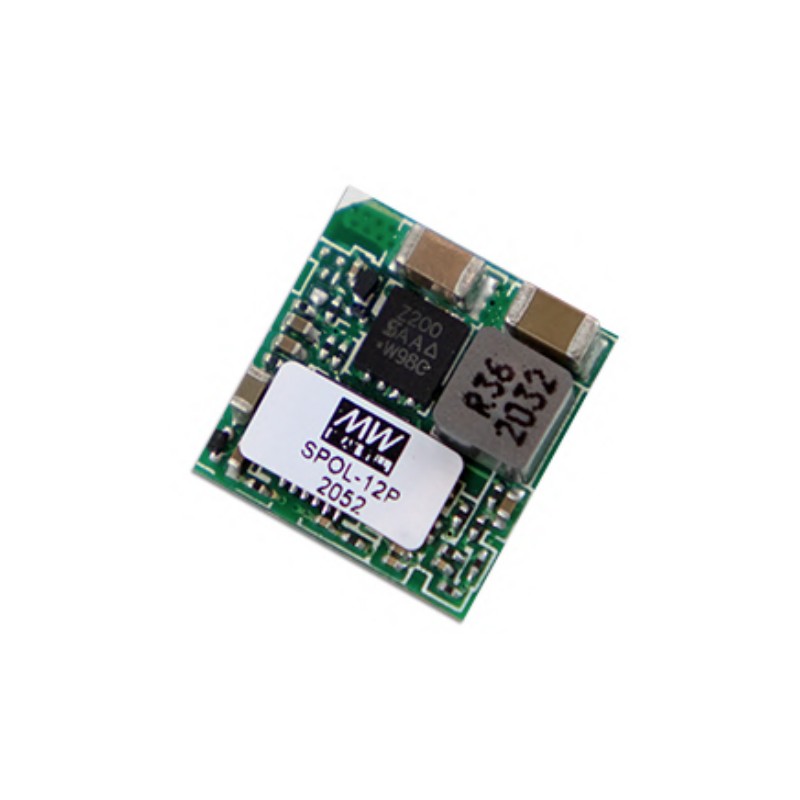

Mean Well DC/DC converter series SPOL-12

DC/DC switching regulators in an open-frame SMD housing with an output current of 12A and a remote ON/OFF control. These devices have a LGA footprint and are suitable for direct PCB mounting. They are protected against short circuit and comply with EN62368-1 as well as EN55032 class A. We offer the type SPOL-12P with a positive logic and the type SPOL-12N with a negative logic of this Mean Well series.

  • single output
  • output current: 12A
  • ripple and noise: 50mVp-p
  • operating temperature: -40 to +90°C
  • dimensions: 12,19x12,19x3,1mm
  • weight: 0,8g

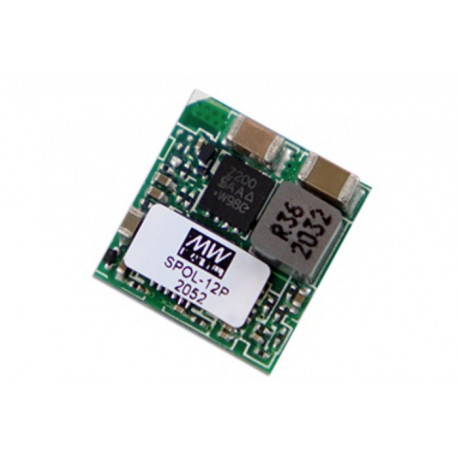

SPOL-12N, Mean Well DC/DC switching regulators, 12A, SMD, SPOL-12 series

SPOL-12N

242655 SPOL-12N SPOL-12N 4711287486659 Mean Well DC/DC converter series SPOL-12. DC/DC switching regulators in an open-frame SMD housing with an output current of 12A and a remote ON/OFF control. These devices have a LGA footprint and are suitable for direct PCB mounting. They are protected against short circuit and comply with EN62368-1 as well as EN55032 class A. We offer the type SPOL-12P with a positive logic and the type SPOL-12N with a negative logic of this Mean Well series. single output output current: 12A ripple and noise: 50mVp-p operating temperature: -40 to +90°C dimensions: 12,19x12,19x3,1mm weight: 0,8g

Specifications

manufacturer
Manufacturer's name SPOL-12N
GTIN 4711287486659
Input voltage range [V] 3...14,4
Efficiency [%] 91
Output voltage range [V] 0,6...5,5
Data Sheet

Unit price

7,59 €

Stock: 0
Further delivery:
CW 17/2025

Minimum order quantity 850 units or
multiples of 850.
