SPD-10S-277S

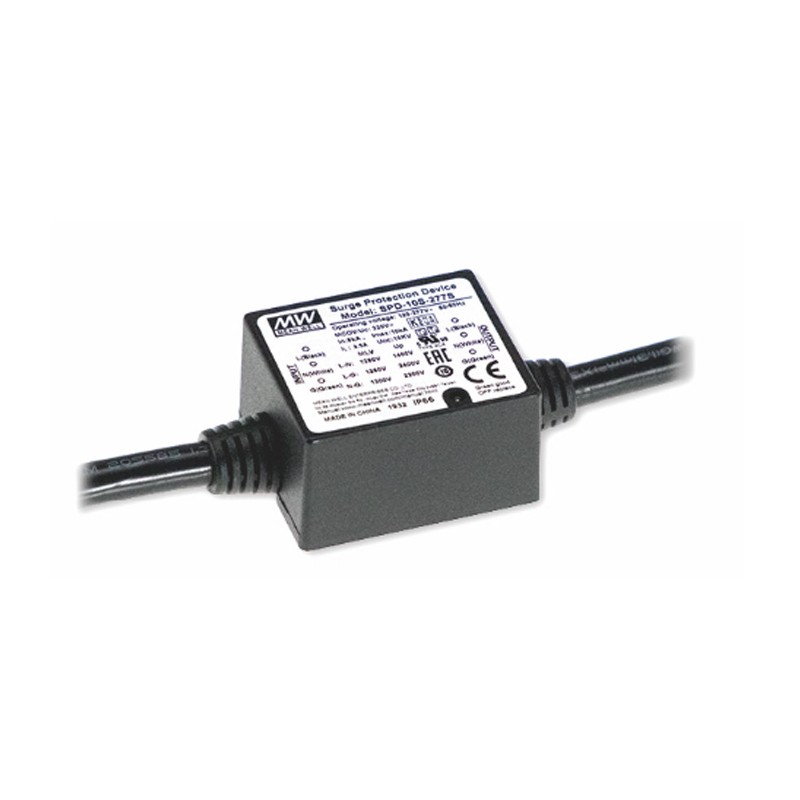

Mean Well surge protection device series SPD-10S-277S

Type 2+3 surge protectors (SPD) in a compact plastic housing (IP66) with an LED status display for protection class I devices. These devices are protected against overvoltages as well as earth-bound potential increases and are particularly suitable for final circuits (e.g. LED lighting). They comply with EN/IEC 61643-11 and should be mounted as close as possible to the device to be protected. We offer the type SPD-10S-277S of this Mean Well series.

  • operating voltage: 120 to 277V
  • maximal continous current: 3,5A
  • protected phases: 1
  • maximal leakage current: 10kA
  • protection level L-N: 1400V
  • protection level L-G/PE: 2400V
  • protection level N-G/PE: 2200V
  • termination: wire
  • operating temperature: -40 to +70°C

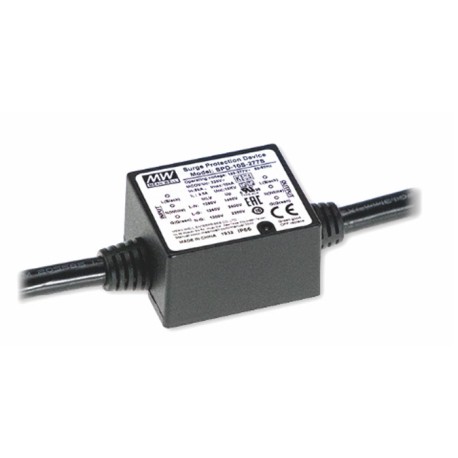

SPD-10S-277S, Mean Well surge protection devices (SPD), IP66, SPD-10S-277S series

SPD-10S-277S

246529 SPD-10S-277S SPD-10S-277S 4711287480831 Mean Well surge protection device series SPD-10S-277S. Type 2+3 surge protectors (SPD) in a compact plastic housing (IP66) with an LED status display for protection class I devices. These devices are protected against overvoltages as well as earth-bound potential increases and are particularly suitable for final circuits (e.g. LED lighting). They comply with EN/IEC 61643-11 and should be mounted as close as possible to the device to be protected. We offer the type SPD-10S-277S of this Mean Well series. operating voltage: 120 to 277V maximal continous current: 3,5A protected phases: 1 maximal leakage current: 10kA protection level L-N: 1400V protection level L-G/PE: 2400V protection level N-G/PE: 2200V termination: wire operating temperature: -40 to +70°C

Specifications

manufacturer
Manufacturer's name SPD-10S-277S
GTIN 4711287480831
Data Sheet

Unit price

10,99 €

Stock: 0
Further delivery:
CW 02/2025
