DPB09B-15

Mean Well DC/DC converter series SPB09 and DPB09

DC/DC converters in a SIL8 housing with 9W, an input voltage ratio of 2:1 and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: SPB09A-03, SPB09A-05, SPB09A-12, SPB09A-15, SPB09A-24, DPB09A-05, DPB09A-12, DPB09A-15, SPB09B-03, SPB09B-05, SPB09B-12, SPB09B-15, SPB09B-24, DPB09B-05, DPB09B-12, DPB09B-15, SPB09C-03, SPB09C-05, SPB09C-12, SPB09C-15, SPB09C-24, DPB09C-05, DPB09C-12 and DPB09C-15.

  • single output (SPB09_) or dual output (DPB09_)
  • output: 9W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 5g

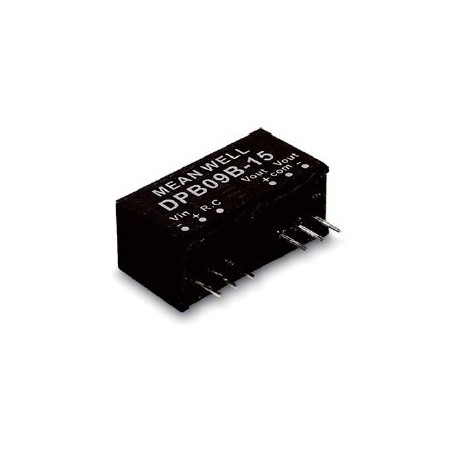

Mean Well DPB09 series

DPB09B-15

113344 DPB09B-15 DPB09B-15 4711287478685 Mean Well DC/DC converter series SPB09 and DPB09. DC/DC converters in a SIL8 housing with 9W, an input voltage ratio of 2:1 and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: SPB09A-03, SPB09A-05, SPB09A-12, SPB09A-15, SPB09A-24, DPB09A-05, DPB09A-12, DPB09A-15, SPB09B-03, SPB09B-05, SPB09B-12, SPB09B-15, SPB09B-24, DPB09B-05, DPB09B-12, DPB09B-15, SPB09C-03, SPB09C-05, SPB09C-12, SPB09C-15, SPB09C-24, DPB09C-05, DPB09C-12 and DPB09C-15. single output (SPB09_) or dual output (DPB09_) output: 9W output voltage tolerance: ±1,5% maximal ripple and noise: 100mVpp withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 5g

Specifications

manufacturer
Manufacturer's name DPB09B-15
GTIN 4711287478685
Input voltage [V] 18...36
Output voltage [V] ±15
Output current range [mA] ±0...300
Efficiency [%] 87
Data Sheet

Unit price

13,59 €

Volume discounts

Quantity Unit price
50 + 12,69 €

Stock: 30
Further delivery:
CW 18/2025
