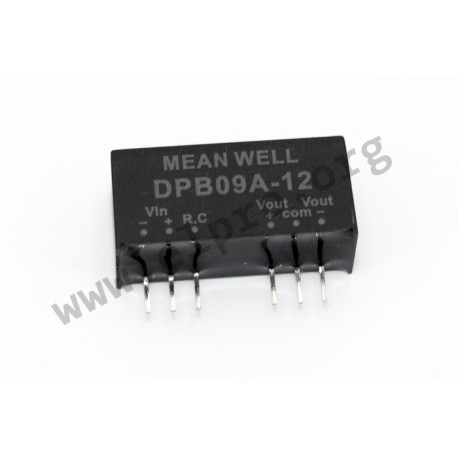

DPB09A-12

Mean Well DC/DC converter series SPB09 and DPB09

DC/DC converters in a SIL8 housing with 9W, an input voltage ratio of 2:1 and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: SPB09A-03, SPB09A-05, SPB09A-12, SPB09A-15, SPB09A-24, DPB09A-05, DPB09A-12, DPB09A-15, SPB09B-03, SPB09B-05, SPB09B-12, SPB09B-15, SPB09B-24, DPB09B-05, DPB09B-12, DPB09B-15, SPB09C-03, SPB09C-05, SPB09C-12, SPB09C-15, SPB09C-24, DPB09C-05, DPB09C-12 and DPB09C-15.

  • single output (SPB09_) or dual output (DPB09_)
  • output: 9W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 5g

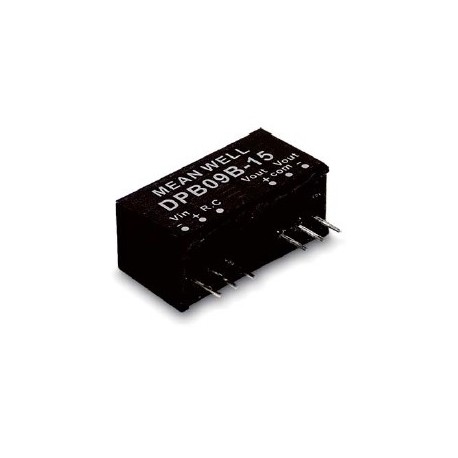

Mean Well DPB09 series

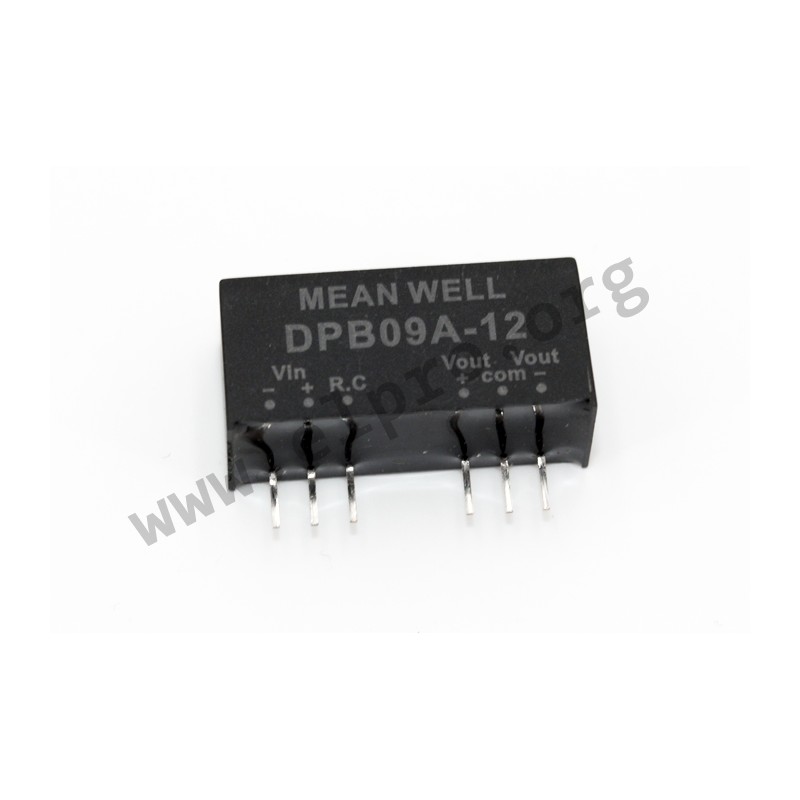

DPB09A-12

113340 DPB09A-12 DPB09A-12 4711287478647 Mean Well DC/DC converter series SPB09 and DPB09. DC/DC converters in a SIL8 housing with 9W, an input voltage ratio of 2:1 and a remote ON/OFF control. These devices are suitable for PCB mounting and are protected against overload, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A. We offer the following types of this Mean Well series: SPB09A-03, SPB09A-05, SPB09A-12, SPB09A-15, SPB09A-24, DPB09A-05, DPB09A-12, DPB09A-15, SPB09B-03, SPB09B-05, SPB09B-12, SPB09B-15, SPB09B-24, DPB09B-05, DPB09B-12, DPB09B-15, SPB09C-03, SPB09C-05, SPB09C-12, SPB09C-15, SPB09C-24, DPB09C-05, DPB09C-12 and DPB09C-15. single output (SPB09_) or dual output (DPB09_) output: 9W output voltage tolerance: ±1,5% maximal ripple and noise: 100mVpp withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 5g

Specifications

manufacturer
Manufacturer's name DPB09A-12
GTIN 4711287478647
Input voltage [V] 9...18
Output voltage [V] ±12
Output current range [mA] ±0...375
Efficiency [%] 88
Data Sheet

Unit price

13,59 €

Volume discounts

Quantity Unit price
50 + 12,69 €

Stock: 0
Next incoming goods:
CW 02/2025
54 units

Further delivery:
CW 22/2025
