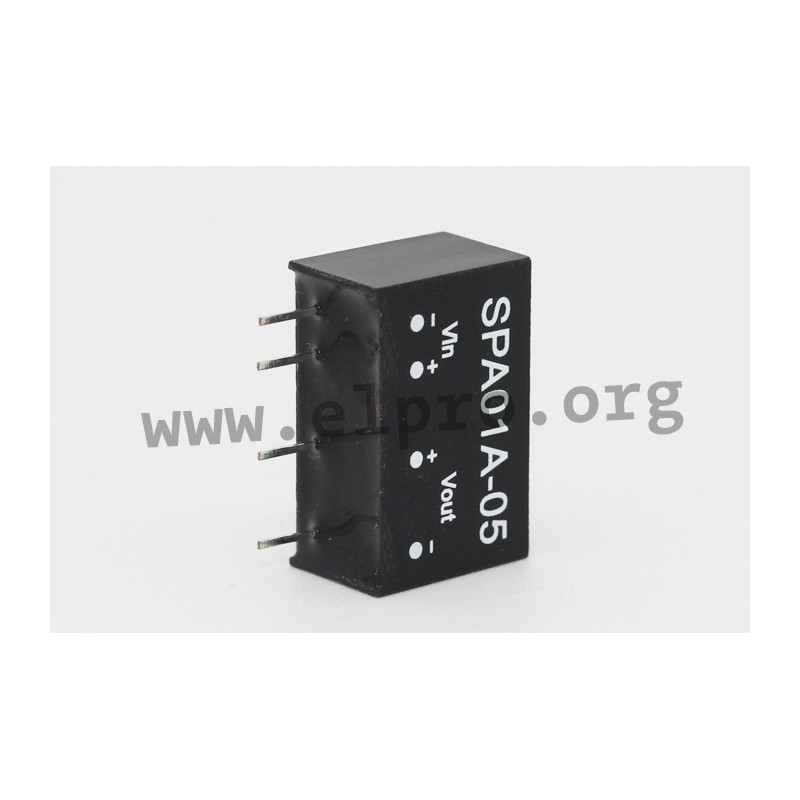

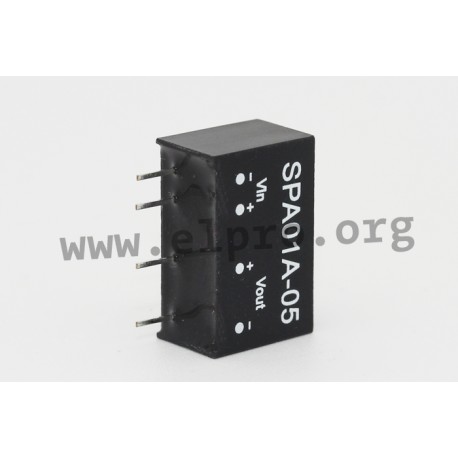

SPA01A-12

Mean Well DC/DC converter series SPA01

Regulated DC/DC converters in a SIL6 housing with 1W and a built-in EMI filter. These devices are suitable for direct PCB mounting and are protected against overload as well as short circuit. They have a fanless design and a high reliability. We offer the following types of this Mean Well series: SPA01A-05, SPA01A-12, SPA01A-15, SPA01B-05, SPA01B-12 and SPA01B-15.

  • single output
  • output: 1W
  • output voltage tolerance: ±2%
  • maximal ripple and noise SPA01_-05: 60mVpp
  • maximal ripple and noise SPA01_-12: 80mVpp
  • maximal ripple and noise SPA01_-15: 80mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 3g
SPA01A-12, Mean Well DC/DC converters, 1W, SIL6 housing, SPA01 series

SPA01A-12

107790 SPA01A-12 SPA01A-12 4711287478128 Mean Well DC/DC converter series SPA01. Regulated DC/DC converters in a SIL6 housing with 1W and a built-in EMI filter. These devices are suitable for direct PCB mounting and are protected against overload as well as short circuit. They have a fanless design and a high reliability. We offer the following types of this Mean Well series: SPA01A-05, SPA01A-12, SPA01A-15, SPA01B-05, SPA01B-12 and SPA01B-15. single output output: 1W output voltage tolerance: ±2% maximal ripple and noise SPA01_-05: 60mVpp maximal ripple and noise SPA01_-12: 80mVpp maximal ripple and noise SPA01_-15: 80mVpp withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 3g

Specifications

manufacturer
Manufacturer's name SPA01A-12
GTIN 4711287478128
Input voltage [V] 9...18
Output voltage [V] 12
Output current range [mA] 8...83
Efficiency [%] 78
Data Sheet

Unit price

7,09 €

Volume discounts

Quantity Unit price
50 + 6,59 €

Stock: 102
Further delivery:
CW 22/2025
