PSAIGP 12V 12,5A

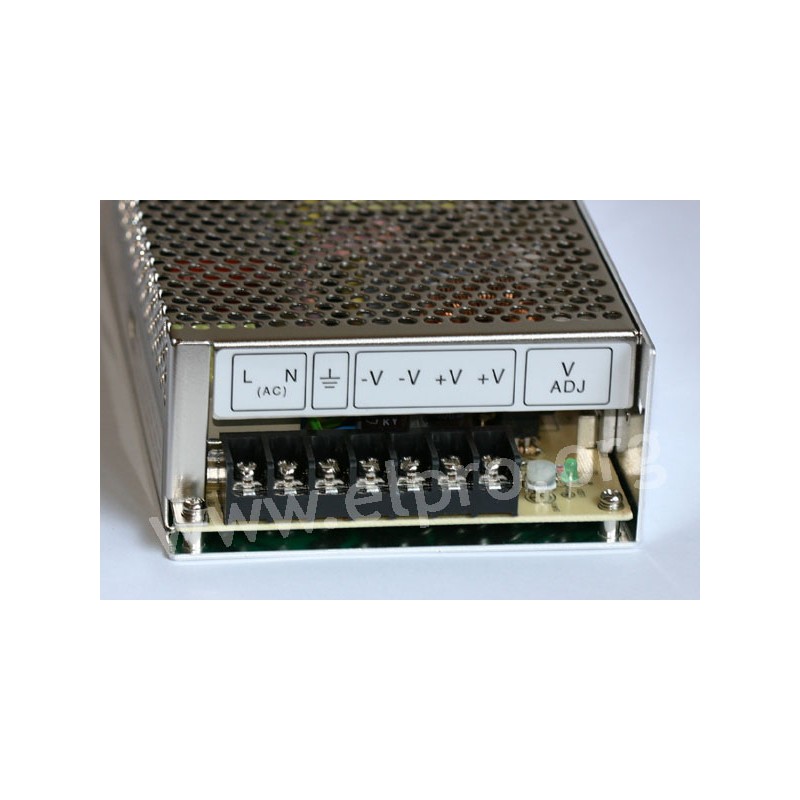

Mean Well power supply series SP-150

Switching power supplies in an enclosed housing with 150W, a universal input, screw terminals and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They comply with UL60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SP-150-12, SP-150-15 and SP-150-24.

  • single output
  • output: 150W
  • input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 45A
  • leakage current: <2mA
  • output voltage adjustment: -5/+10%
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -10 to +55°C
  • weight: 760g

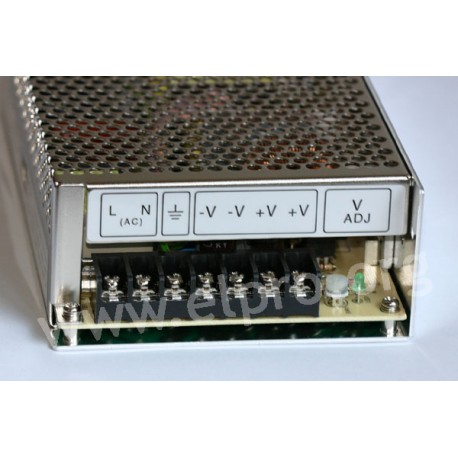

Meanwell SP-150 series

PSAIGP 12V 12,5A

18024 PSAIGP 12V 12,5A SP-150-12 SP-150-12 Mean Well power supply series SP-150. Switching power supplies in an enclosed housing with 150W, a universal input, screw terminals and a low profile. These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They comply with UL60950-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: SP-150-12, SP-150-15 and SP-150-24. single output output: 150W input voltage: 85 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 45A leakage current: &lt;2mA output voltage adjustment: -5/+10% overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -10 to +55°C weight: 760g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SP-150-12
Output voltage [V] 12
Phase 2 phase
Efficiency [%] 84
Output current range [A] 0...12,5
Output voltage tolerance: [%] 2
Output power [W] 150
Ripple [mVp-p] 100
Data Sheet

Unit price

31,99 €

Stock: 8
