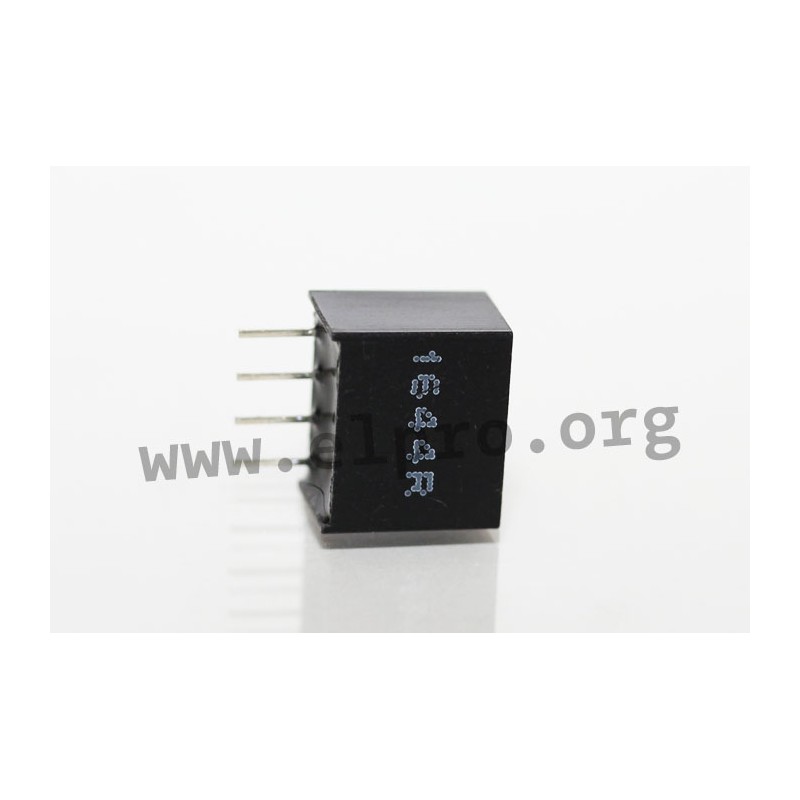

SMU01M-12

Mean Well DC/DC converter series SMU01

Unregulated DC/DC converters in a SIL4 housing with 1W and a galvanic isolation between input/output. These devices are suitable for direct PCB mounting and comply with EN55032 class B as well as EN61000-4-2. They have a high reliability and a fanless design. We offer the following types of this Mean Well series: SMU01L-05, SMU01L-09, SMU01L-12, SMU01L-15, SMU01M-05, SMU01M-09, SMU01M-12, SMU01M-15, SMU01N-05, SMU01N-09, SMU01N-12 and SMU01N-15.

  • single output
  • output: 1W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 100mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 1,3g
Meanwell SMU series

SMU01M-12

35731 SMU01M-12 SMU01M-12 4711287477961 Mean Well DC/DC converter series SMU01. Unregulated DC/DC converters in a SIL4 housing with 1W and a galvanic isolation between input/output. These devices are suitable for direct PCB mounting and comply with EN55032 class B as well as EN61000-4-2. They have a high reliability and a fanless design. We offer the following types of this Mean Well series: SMU01L-05, SMU01L-09, SMU01L-12, SMU01L-15, SMU01M-05, SMU01M-09, SMU01M-12, SMU01M-15, SMU01N-05, SMU01N-09, SMU01N-12 and SMU01N-15. single output output: 1W output voltage tolerance: ±2% maximal ripple and noise: 100mVpp withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 1,3g

Specifications

manufacturer
Manufacturer's name SMU01M-12
GTIN 4711287477961
Case SIL 4 case
Input [V DC] 12
Output [mA] 0...84
Output [V] 12
Efficiency [%] 80
Data Sheet

Unit price

4,09 €

Volume discounts

Quantity Unit price
50 + 3,69 €

Stock: 222
Further delivery:
CW 22/2025
