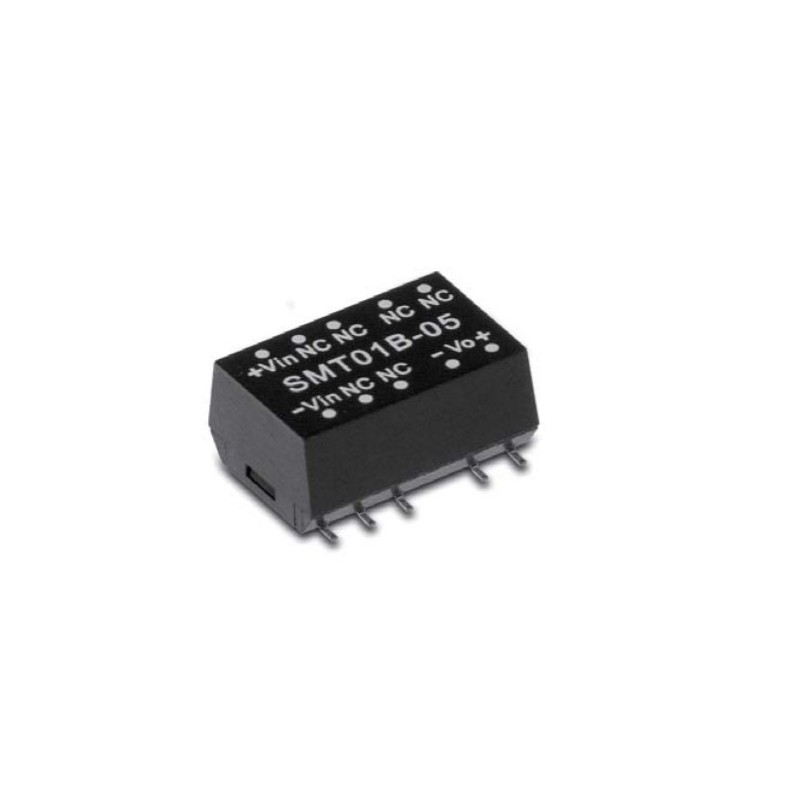

SMT01A-15

Mean Well DC/DC converter series SMT01

Isolated DC/DC converter modules in an SMD housing with 1W. These devices have a regulated output voltage and are protected against short circuit as well as overload by current limiting (auto recovery). They are suitable for direct PCB mounting, comply with EN55032 as well as EN61000-4-2 and have an input voltage ratio of 2:1. We offer the follwing types of this Mean Well series: SMT01A-05, SMT01A-12, SMT01A-15, SMT01B-05, SMT01B-12, SMT01B-15, SMT01C-05, SMT01C-12 and SMT01C-15.

  • single output
  • output power: 1W
  • input voltage SMT01A_: 9 to 18V
  • input voltage SMT01B_: 18 to 36V
  • input voltage SMT01C_: 36 to 72V
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 100mVp-p
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 1,4g
  • dimensions: 15,24x10,9x7,1mm

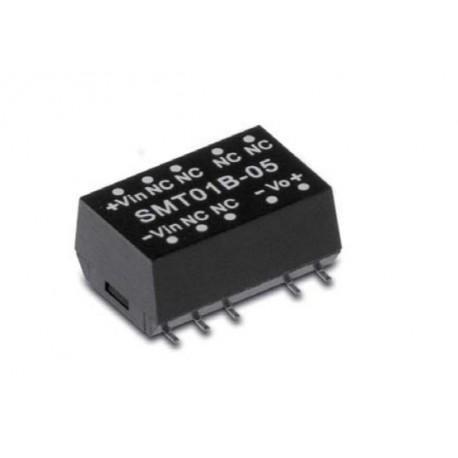

SMT01A-15, Mean Well DC/DC converters, 1W, SMD housing, SMT01 series

SMT01A-15

114471 SMT01A-15 SMT01A-15 4711287477831 Mean Well DC/DC converter series SMT01. Isolated DC/DC converter modules in an SMD housing with 1W. These devices have a regulated output voltage and are protected against short circuit as well as overload by current limiting (auto recovery). They are suitable for direct PCB mounting, comply with EN55032 as well as EN61000-4-2 and have an input voltage ratio of 2:1. We offer the follwing types of this Mean Well series: SMT01A-05, SMT01A-12, SMT01A-15, SMT01B-05, SMT01B-12, SMT01B-15, SMT01C-05, SMT01C-12 and SMT01C-15. single output output power: 1W input voltage SMT01A_: 9 to 18V input voltage SMT01B_: 18 to 36V input voltage SMT01C_: 36 to 72V output voltage tolerance: ±2% maximal ripple and noise: 100mVp-p withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 1,4g dimensions: 15,24x10,9x7,1mm

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SMT01A-15
GTIN 4711287477831
Output voltage [V] 15
Input voltage range [V] 9...18
Output current range [mA] 6,7...67
Efficiency [%] 75
Data Sheet

Unit price

9,09 €

Stock: 50
