SLD-80-56

Mean Well LED driver series SLD-80

LED drivers in a plastic housing with a constant current, a universal input, a constant power or 80W. These devices are not dimmable, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C as well as EN55015. They have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. We offer the follwing types of this Mean Well series: SLD-80-12, SLD-80-24 and SLD-80-56.

  • single output
  • output: 78,4 to 79,2W
  • input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC
  • maximal input inrush current: 50A
  • overcurrent protection (SLD-80-12/24): 95 to 108%
  • overload protection (SLD-80-56): 110 to 150%
  • withstand voltage (I/P-O/P): 3750V AC
  • operating temperature: -20 to +90°C
  • weight: 206g

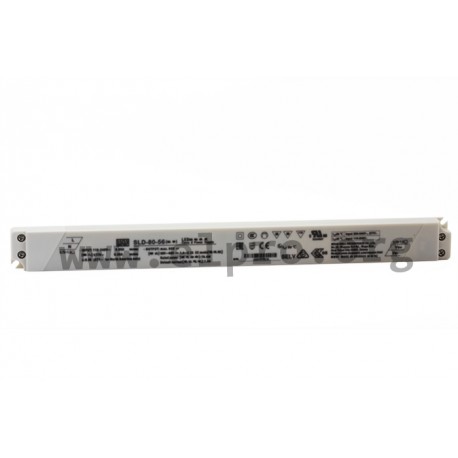

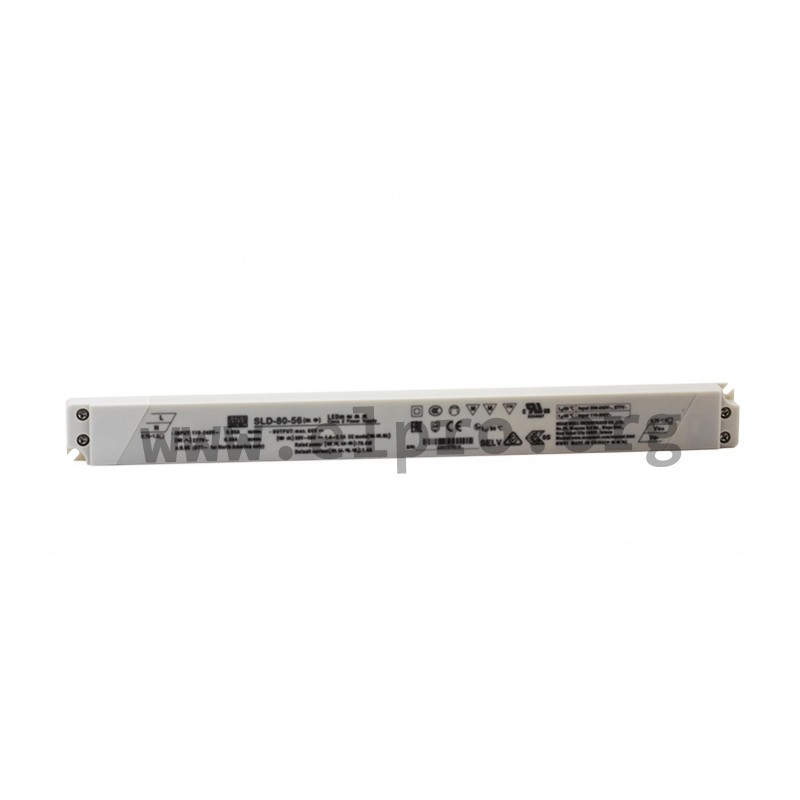

SLD-80-56, Mean Well LED switching power supplies, 80W, CV und CC mixed mode, constant power, SLD-80 series

SLD-80-56

123084 SLD-80-56 SLD-80-56 4711287457628 Mean Well LED driver series SLD-80. LED drivers in a plastic housing with a constant current, a universal input, a constant power or 80W. These devices are not dimmable, are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61000-3-2 class C as well as EN55015. They have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit. We offer the follwing types of this Mean Well series: SLD-80-12, SLD-80-24 and SLD-80-56. single output output: 78,4 to 79,2W input voltage: 110 to 305V AC (47 to 63Hz), 155 to 431V DC maximal input inrush current: 50A overcurrent protection (SLD-80-12/24): 95 to 108% overload protection (SLD-80-56): 110 to 150% withstand voltage (I/P-O/P): 3750V AC operating temperature: -20 to +90°C weight: 206g

Specifications

manufacturer
Manufacturer's name SLD-80-56
GTIN 4711287457628
Efficiency [%] 92
Output current [A] 1,4
Output voltage tolerance: [%] 5
Output power [W] 78,4
Ripple [mVp-p] 70
Output voltage range [V] 30...56
Data Sheet

Unit price

22,09 €

Volume discounts

Quantity Unit price
50 + 20,59 €

Stock: 135
Further delivery:
CW 16/2025
