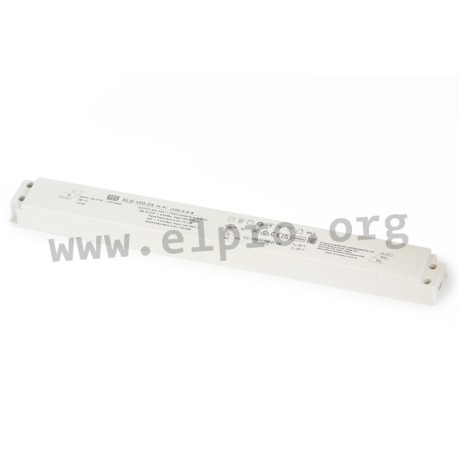

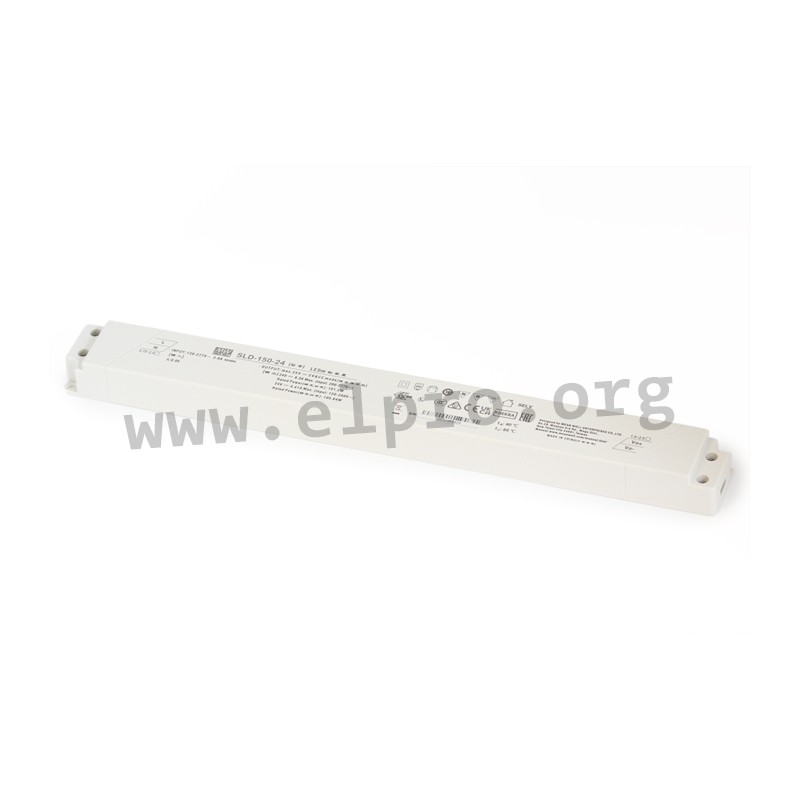

SLD-150-24

Mean Well LED driver series SLD-150

LED drivers in a plastic housing with 150W, a universal input, a constant voltage/current (SLD-150-12/24), a constant power (SLD-150-56) and protection class II. These devices have a built-in active PFC function and are protected against overload, short circuit, overtemperature as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13, EN62384, EN60335-1 as well as EN55015. We offer the following types of this Mean Well series: SLD-150-12, SLD-150-24 and SLD-150-56.

  • single output
  • output: 144 to 151,2W
  • input voltage: 120 to 305V AC (47 to 63Hz), 170 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3860V AC
  • operating temperature: -25 to +85°C
  • dimensions: 330x35x22mm
  • weight: 310g
SLD-150-24, Mean Well LED drivers, 150W, CV and CC (mixed mode), constant power, SLD-150 series

SLD-150-24

242954 SLD-150-24 SLD-150-24 Mean Well LED driver series SLD-150. LED drivers in a plastic housing with 150W, a universal input, a constant voltage/current (SLD-150-12/24), a constant power (SLD-150-56) and protection class II. These devices have a built-in active PFC function and are protected against overload, short circuit, overtemperature as well as overvoltage. They are not dimmable and comply with EN61347-1, EN61347-2-13, EN62384, EN60335-1 as well as EN55015. We offer the following types of this Mean Well series: SLD-150-12, SLD-150-24 and SLD-150-56. single output output: 144 to 151,2W input voltage: 120 to 305V AC (47 to 63Hz), 170 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3860V AC operating temperature: -25 to +85°C dimensions: 330x35x22mm weight: 310g

Specifications

manufacturer
Manufacturer's name SLD-150-24
Output voltage [V] 24
Efficiency [%] 93
Output current [A] 6,3
Output voltage tolerance: [%] ±3
Output power [W] 151,2
Ripple [mVp-p] 240
Data Sheet

Unit price

29,39 €

Volume discounts

Quantity Unit price
50 + 27,39 €

Stock: 0
Next incoming goods:
CW 03/2025
100 units

Further delivery:
CW 11/2025
