SLC03B-15

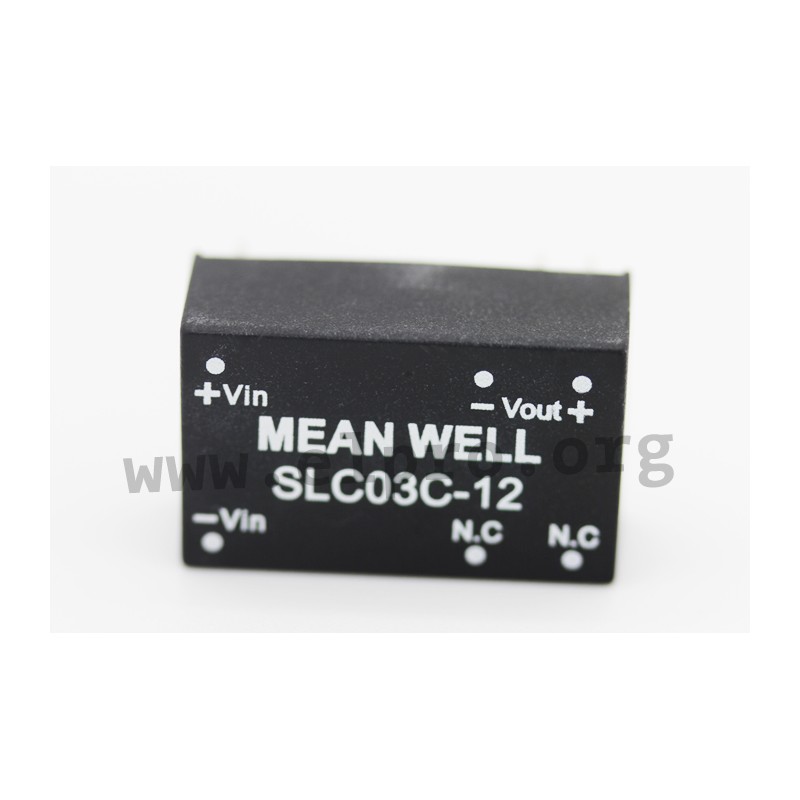

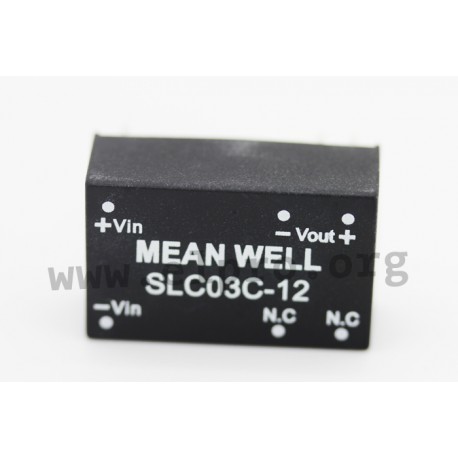

Mean Well DC/DC converter series SLC03

Regulated DC/DC converters in a DIL16 housing with 3W and a high efficiency (up to 82%). These devices are suitable for PCB mounting and are protected against overload, short circuit (continuous) as well as input undervoltage. They require no minimum load and comply with EN55032 class B. We offer the following types of this Mean Well series: SLC03A-05, SLC03A-12, SLC03A-15, SLC03B-05, SLC03B-12, SLC03B-15, SLC03C-05, SLC03C-12 and SLC03C-15.

  • single output
  • output: 3W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 4,5g
Mean Well SLC03 series

SLC03B-15

110425 SLC03B-15 SLC03B-15 4711287477442 Mean Well DC/DC converter series SLC03. Regulated DC/DC converters in a DIL16 housing with 3W and a high efficiency (up to 82%). These devices are suitable for PCB mounting and are protected against overload, short circuit (continuous) as well as input undervoltage. They require no minimum load and comply with EN55032 class B. We offer the following types of this Mean Well series: SLC03A-05, SLC03A-12, SLC03A-15, SLC03B-05, SLC03B-12, SLC03B-15, SLC03C-05, SLC03C-12 and SLC03C-15. single output output: 3W output voltage tolerance: ±2% maximal ripple and noise: 50mVpp withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 4,5g

Specifications

manufacturer
Manufacturer's name SLC03B-15
GTIN 4711287477442
Input voltage [V] 18...36
Output voltage [V] 15
Output current range [mA] 0...200
Efficiency [%] 82
Data Sheet

Unit price

8,49 €

Volume discounts

Quantity Unit price
50 + 7,89 €

Stock: 24
Further delivery:
CW 18/2025
