> Power supplies>Voltage converters>DC/DC converters, PCB mounting>Mean Well DC/DC converters, 3W, DIL16 housing, SLC03 series>SLC03A-15

Manufacturers

SLC03A-15

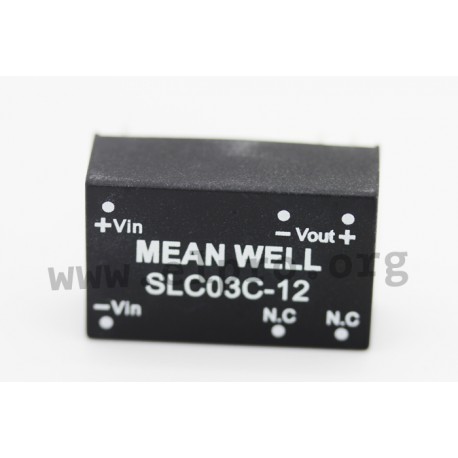

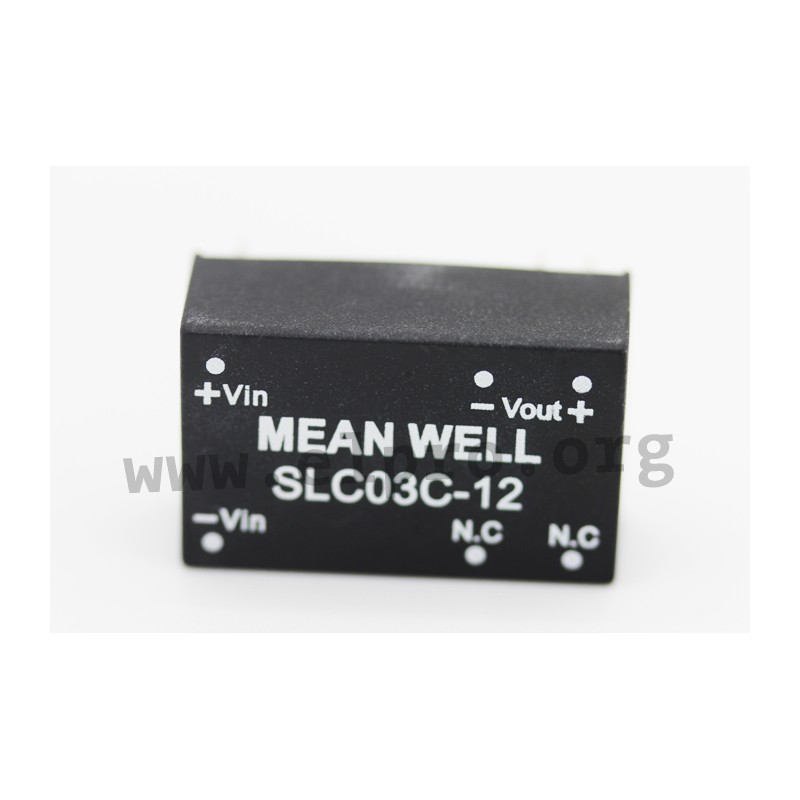

Mean Well DC/DC converter series SLC03

Regulated DC/DC converters in a DIL16 housing with 3W and a high efficiency (up to 82%). These devices are suitable for PCB mounting and are protected against overload, short circuit (continuous) as well as input undervoltage. They require no minimum load and comply with EN55032 class B. We offer the following types of this Mean Well series: SLC03A-05, SLC03A-12, SLC03A-15, SLC03B-05, SLC03B-12, SLC03B-15, SLC03C-05, SLC03C-12 and SLC03C-15.

  • single output
  • output: 3W
  • output voltage tolerance: ±2%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 4,5g
Mean Well SLC03 series

SLC03A-15

110422 SLC03A-15 SLC03A-15 4711287477411 Mean Well DC/DC converter series SLC03. Regulated DC/DC converters in a DIL16 housing with 3W and a high efficiency (up to 82%). These devices are suitable for PCB mounting and are protected against overload, short circuit (continuous) as well as input undervoltage. They require no minimum load and comply with EN55032 class B. We offer the following types of this Mean Well series: SLC03A-05, SLC03A-12, SLC03A-15, SLC03B-05, SLC03B-12, SLC03B-15, SLC03C-05, SLC03C-12 and SLC03C-15. single output output: 3W output voltage tolerance: ±2% maximal ripple and noise: 50mVpp withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 4,5g

Specifications

manufacturer
Manufacturer's name SLC03A-15
GTIN 4711287477411
Input voltage [V] 9...18
Output voltage [V] 15
Output current range [mA] 0...200
Efficiency [%] 81
Data Sheet

Unit price

8,49 €

Volume discounts

Quantity Unit price
50 + 7,89 €

Stock: 0
Next incoming goods:
CW 03/2025
10 units

Further delivery:
CW 18/2025
