SKMW20F-03

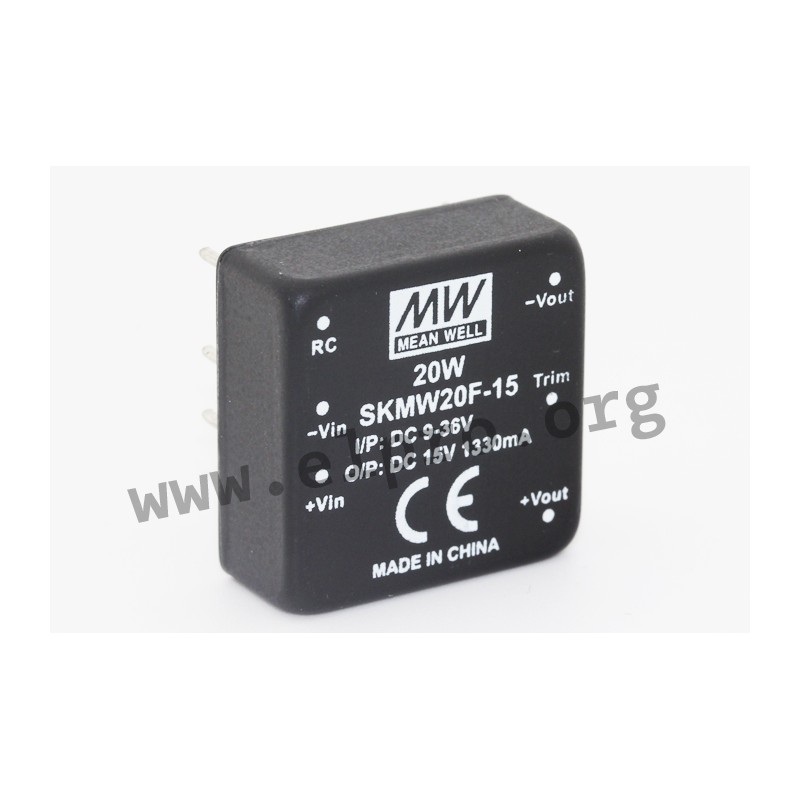

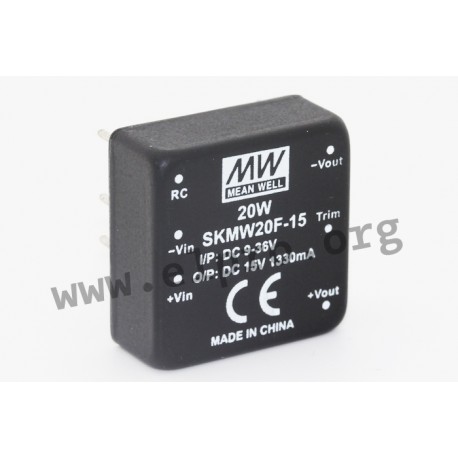

Mean Well DC/DC converter series SKMW20

DC/DC converters in a 1"x1" DIL housing with 20W, a remote ON/OFF control, a regulated output voltage and an input voltage ratio of 4:1. These devices require no minimum load and are protected against overload, input undervoltage, short circuit (continuous) as well as overvoltage. They have a trimming output (±10%) and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: SKMW20F-03, SKMW20F-05, SKMW20F-12, SKMW20F-15, SKMW20G-03, SKMW20G-05, SKMW20G-12 and SKMW20G-15.

  • single output
  • output: 15 to 20W
  • output voltage tolerance: ±1,5%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 18g
Meanwell SKMW20 series

SKMW20F-03

110453 SKMW20F-03 SKMW20F-03 4711287477152 Mean Well DC/DC converter series SKMW20. DC/DC converters in a 1"x1" DIL housing with 20W, a remote ON/OFF control, a regulated output voltage and an input voltage ratio of 4:1. These devices require no minimum load and are protected against overload, input undervoltage, short circuit (continuous) as well as overvoltage. They have a trimming output (±10%) and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: SKMW20F-03, SKMW20F-05, SKMW20F-12, SKMW20F-15, SKMW20G-03, SKMW20G-05, SKMW20G-12 and SKMW20G-15. single output output: 15 to 20W output voltage tolerance: ±1,5% withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 18g

Specifications

manufacturer
Manufacturer's name SKMW20F-03
GTIN 4711287477152
Input voltage [V] 9...36
Output current range [mA] 0...4500
Efficiency [%] 87
Data Sheet

Unit price

30,19 €

Volume discounts

Quantity Unit price
50 + 28,09 €

Stock: 55
Further delivery:
CW 18/2025
