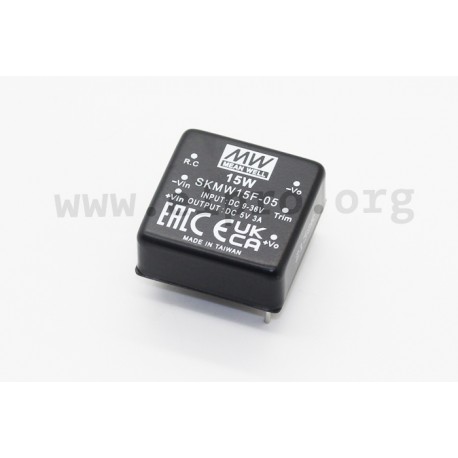

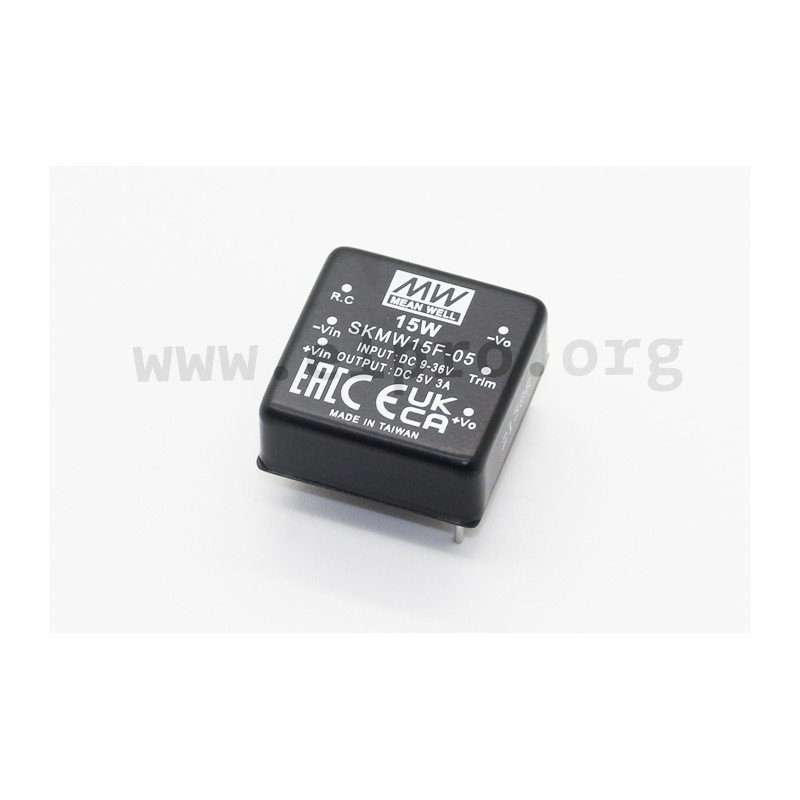

SKMW15G-05

Mean Well DC/DC converter series SKMW15

Regulated converter modules in a 1x1 inch housing with 15W and an ultra wide input range (4:1). These devices have an efficiency of up to 89%, do not require a minimum load and are protected against short circuit, overload as well as overvoltage. They are suitable for direct PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKMW15F-03, SKMW15F-05, SKMW15F12, SKMW15G-03, SKMW15G-05, SKMW15G-12 and SKMW15G-15.

  • single output
  • output: 15W
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +80°C
  • dimensions: 25,4x25,4x10,2mm
  • weight: 20g
SKMW15G-05, Mean Well DC/DC converters, 15W, 1"x1", SKMW15 series

SKMW15G-05

235220 SKMW15G-05 SKMW15G-05 4711287477022 Mean Well DC/DC converter series SKMW15. Regulated converter modules in a 1x1 inch housing with 15W and an ultra wide input range (4:1). These devices have an efficiency of up to 89%, do not require a minimum load and are protected against short circuit, overload as well as overvoltage. They are suitable for direct PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: SKMW15F-03, SKMW15F-05, SKMW15F12, SKMW15G-03, SKMW15G-05, SKMW15G-12 and SKMW15G-15. single output output: 15W withstand voltage: 3000V DC operating temperature: -40 to +80°C dimensions: 25,4x25,4x10,2mm weight: 20g

Specifications

manufacturer
Manufacturer's name SKMW15G-05
GTIN 4711287477022
Output voltage [V] 5
Input voltage range [V] 18...36
Output current range [mA] 0...3000
Efficiency [%] 86
Ripple [mVp-p] 50
Data Sheet

Unit price

22,09 €

Volume discounts

Quantity Unit price
50 + 20,49 €

Stock: 33
Further delivery:
CW 18/2025
