SKMW06G-05

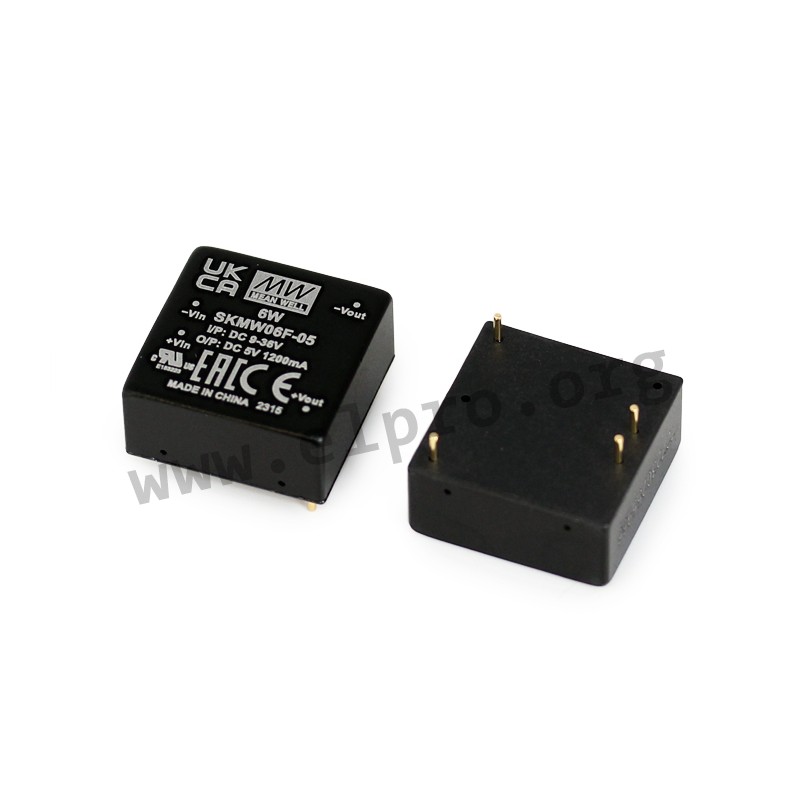

Mean Well DC/DC converter series SKMW06

Regulated converter modules in a DIL housing (1x1 inch) with 6W, a wide input voltage range (4:1) and cooling by free air convection. These devices have an efficiency of up to 86%, require no minimum load and are protected against short circuit (continuous), overload as well as overvoltage. They are suitable for direct PCB mounting and comply with UL60950-1, EN55032 class A as well as EN61000-4-2. We offer the following types of this Mean Well series: SKMW06F-03, SKMW06F-05, SKMW06F-09, SKMW06F-12, SKMW06F-15, SKMW06F-24, SKMW06G-03, SKMW06G-05, SKMW06G-12, SKMW06G-15 and SKMW06G-24.

  • single output
  • output: 6W
  • input voltage (SKMW_F_): 9 to 36V
  • input voltage (SKMW_G_): 18 to 75V
  • output voltage tolerance: ±1%
  • maximal ripple and noise: 85mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 12,5g
  • dimensions: 25,4x25,4x11,7mm
SKMW06G-05, Mean Well DC/DC converters, 6W, 1"x1", SKMW06 series

SKMW06G-05

235211 SKMW06G-05 SKMW06G-05 4711287476902 Mean Well DC/DC converter series SKMW06. Regulated converter modules in a DIL housing (1x1 inch) with 6W, a wide input voltage range (4:1) and cooling by free air convection. These devices have an efficiency of up to 86%, require no minimum load and are protected against short circuit (continuous), overload as well as overvoltage. They are suitable for direct PCB mounting and comply with UL60950-1, EN55032 class A as well as EN61000-4-2. We offer the following types of this Mean Well series: SKMW06F-03, SKMW06F-05, SKMW06F-09, SKMW06F-12, SKMW06F-15, SKMW06F-24, SKMW06G-03, SKMW06G-05, SKMW06G-12, SKMW06G-15 and SKMW06G-24. single output output: 6W input voltage (SKMW_F_): 9 to 36V input voltage (SKMW_G_): 18 to 75V output voltage tolerance: ±1% maximal ripple and noise: 85mVpp withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 12,5g dimensions: 25,4x25,4x11,7mm

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name SKMW06G-05
GTIN 4711287476902
Output voltage [V] 5
Input voltage range [V] 18...75
Efficiency [%] 81
Output current range [A] 0...1200
Data Sheet

Unit price

9,99 €

Stock: 63
